01 - Cover Sheet
02 - Top And Console Parts

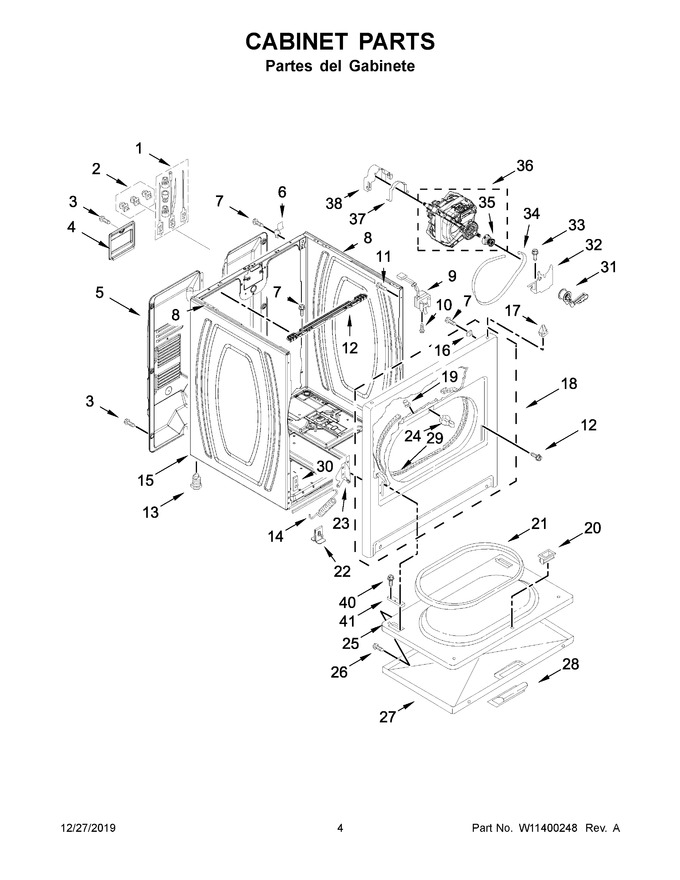

03 - Cabinet Parts
04 - Drum And Internal Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 2 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11752210 | Cover, Terminal Block (Replaces: W10807503) |
|
- | |||||
| 5 | W11165016 | Panel, Rear |
|
- | |||||
| 6 | W11715722 | Hinge, Top (Replaces: W10641296) |
|
$ 8.19 | |||||
| 7 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 8.45 | ||||
| 9 | WP3406107 | Switch, Door (Replaces: W10569603) |
|
Immediately | $ 31.20 | ||||
| 10 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 11 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 12 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 54.09 | ||||
| 13 | W10813918 | Foot, Dryer (Replaces: W10754507) |
|
Immediately | $ 13.70 | ||||
| 14 | WPW10041960 | Spring, Door (Replaces: W10041960) |
|
Immediately | $ 42.70 | ||||
| 15 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 16 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 17 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 18 | 279443 | Panel, Front (white) (Replaces: W10664693) |
|
$ 405.51 | |||||
| 19 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 20 | WP3389441 | Assembly, Door Catch (Replaces: 3389441) |
|
$ 6.20 | |||||
| 21 | W10906683 | Seal, Door (Replaces: W10823580) |
|
$ 134.96 | |||||
| 22 | W10575896 | Clip, Spring |
|
$ 15.15 | |||||
| 23 | WP8066056 | Hinge, Door (right) (Replaces: 8066056) |
|
Immediately | $ 103.36 | ||||
| 24 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 25 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 267.29 | |||||
| 26 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 27 | W10861223 | Door, Front (white) (Replaces: W10714515) |
|
$ 233.28 | |||||
| 28 | W10861225 | Handle, Door (white) (Replaces: W10714516) |
|
Immediately | $ 54.26 | ||||
| 29 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 78.78 | ||||
| 30 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 16.34 | ||||
| 31 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 32 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 33 | 3400500 | Bolt |
|
Immediately | $ 14.04 | ||||
| 34 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 35 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 36 | 279827 | Assembly, Motor (Replaces: W10396032) |
|
Immediately | $ 191.95 | ||||
| 37 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 38 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 23A | WP8066057 | Hinge, Door (left) (Replaces: 8066057) |
|
$ 100.95 |
