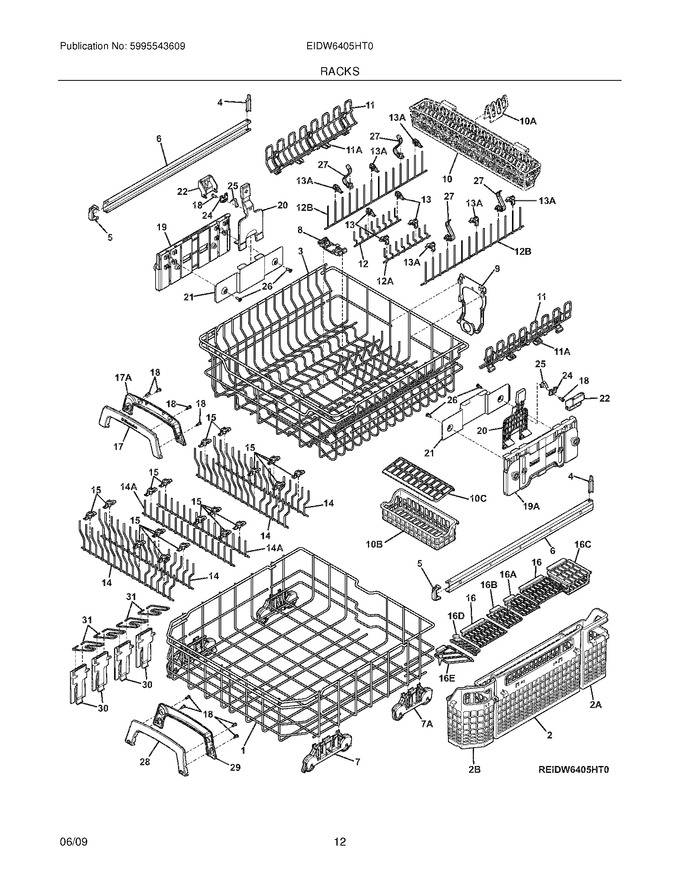

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7154625401		Rack Assembly,lower		Appelez-nous	-
2	7154632401		Basket,silverware ,main ,center		Appelez-nous	-
3	7154625301		Rack Assembly,upper		Appelez-nous	-
4	154510902		Clip,guide Rail ,rear ,(2)   (Replaces: 7154510902)				$ 17.31
5	154510805		Cap,guide Rail ,front ,(2)   (Replaces: 7154510805)				$ 13.74
6	7154510401		Guide Rail,upper Rack ,(2)		Appelez-nous	-
7	7154671301		Roller Assembly,lower Rack ,front ,(2)		Appelez-nous	-
8	7154610501		Bracket,spray Arm ,middle ,mounting		Appelez-nous	-
9	154613402		Clip,manifold Mtg ,back   (Replaces: 7154613402)				$ 98.46
10	7154581203		Basket Assy,knife Holder		Appelez-nous	-
11	7154629002		Shelf,cup ,upper Rack ,(2)		Appelez-nous	-
12	7154629302		Fence,fold Down ,lh Center ,upper Rack		Appelez-nous	-
13	7154629402		Clip,fold Down Fence ,upper Rack ,(4)		Appelez-nous	-
14	7154630902		Fence,fold Down ,lower Rack ,(2) ,single		Appelez-nous	-
15	7154428403		Bracket,fence ,lower Rack ,(18)		Appelez-nous	-
16	7154631401		Lid,main Basket ,side ,(2)		Appelez-nous	-
17	7154629503		Handle,front ,upper Rack ,electrolux		Appelez-nous	-
18	7154629701		Screw,handle ,upper Rack ,(4)		Appelez-nous	-
19	7154673701		Plate Assembly,adjustment Mech ,rh Outer,upper Rack		Appelez-nous	-
20	7154655101		Actuator Pad,assembly ,upper Rack ,(2) ,mechanical Adj		Appelez-nous	-
21	7154630101		Plate,adjustment Mtg. ,inner ,(2) ,upper Rack		Appelez-nous	-
22	7154630301		Housing,adjustment Mech ,upper Rack ,(2)		Appelez-nous	-
24	7154655201		Clamp,actuator ,upper Rack ,(2) ,adjustment Mech		Appelez-nous	-
25	7154630201		Spring,adjustment Mech ,upper Rack ,(2)		Appelez-nous	-
26	7154673501		Screw,6 Lobe Recess ,no.10 Hi Lo		Appelez-nous	-
27	7154528803		Clip,cup ,(2)		Appelez-nous	-
28	7154631503		Handle,lower Rack ,front		Appelez-nous	-
29	7154631601		Handle,lower Rack ,back		Appelez-nous	-
30	7154632301		Clip,holder ,champagne ,(2)		Appelez-nous	-
31	7154632201		Holder,champagne Glass ,(2)		Appelez-nous	-
10A	7154581303		Holder,snap In		Appelez-nous	-
10B	7154632101		Tray,utility		Appelez-nous	-
10C	7154652001		Lid,utility Tray		Appelez-nous	-
11A	7154629102		Clip,cup Shelf ,upper Rack ,(2)		Appelez-nous	-
12A	7154654302		Fence,fold Down ,rh Center ,upper Rack		Appelez-nous	-
12B	7154652102		Fence,fold Down ,upper Rack		Appelez-nous	-
13A	154652202		Clip,fence ,upper Rack   (Replaces: 7154652202)				$ 9.22
14A	7154631102		Fence,fold Down ,lower Rack ,(2)		Appelez-nous	-
16A	7154632501		Lid,main Basket ,lh Center		Appelez-nous	-
16B	7154651701		Lid,main Basket ,rh Center		Appelez-nous	-
16C	7154649001		Lid,basket ,knife		Appelez-nous	-
16D	7154651801		Lid,basket ,chopsticks		Appelez-nous	-
16E	7154634901		Lid,basket ,rh Side		Appelez-nous	-
17A	7154629601		Handle,back ,upper Rack		Appelez-nous	-
19A	7154673601		Plate Assembly,adjustment Mech ,lh Outer,upper Rack		Appelez-nous	-
2A	7154632601		Basket,silverware ,side ,rear		Appelez-nous	-
2B	7154632701		Basket,silverware ,side ,front		Appelez-nous	-
7A	7154689501		Roller Assembly,lower Rack ,rear ,(2)		Appelez-nous	-
