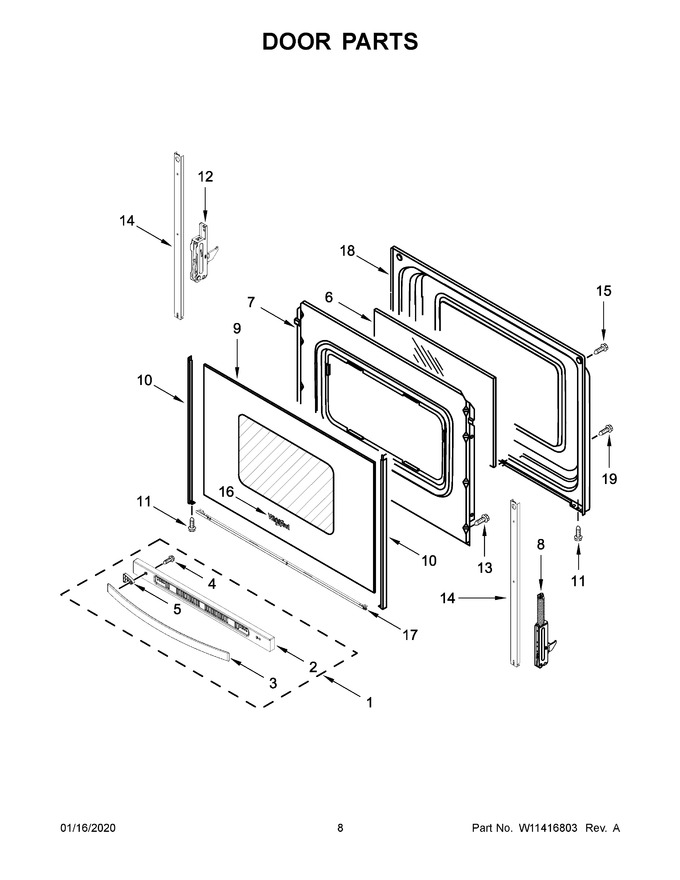

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11590861		Handle And Vent Assembly (white)   (Replaces: W11039084)			Immediately	$ 179.24
2	W10817433		Trim, Vent (white)   (Replaces: W10310920)			Immediately	$ 162.27
3	W11107407		Handle, Door (white)   (Replaces: W11022644)				$ 213.73
4	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
5	N/P		Standoff (not Serviced, Order Handle And Vent Assembly)		Appelez-nous	-
6	W11399628		Glass, Inner   (Replaces: W11367326)				$ 154.51
7	W11685635		Retainer, Insulation   (Replaces: 9761505)				$ 169.46
8	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 90.51
9	WPW10409945		Glass Assembly, Outer Door (white)   (Replaces: W10409945)			Immediately	$ 245.12
10	WP8523172		Trim, Side (white (left))   (Replaces: 8523172)			Immediately	$ 62.94
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
12	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
14	W11502236		Door Strap   (Replaces: W11379944)			Immediately	$ 24.91
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
16	W11178521		Badge (nameplate)   (Replaces: W10884775)			Immediately	$ 56.82
17	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 55.23
18	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
19	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
10A	WP8523166		Trim, Side (white (right))   (Replaces: 8523166)			Immediately	$ 75.81

    View Diagram in Separate Window       Print Part List
