Center Spacer
Control Panel
Convection Fan
Door Lock
Lower Door
Lower Oven
Pedestal
Upper Door
Upper Oven
SELECT A DIAGRAM
New Model Search:

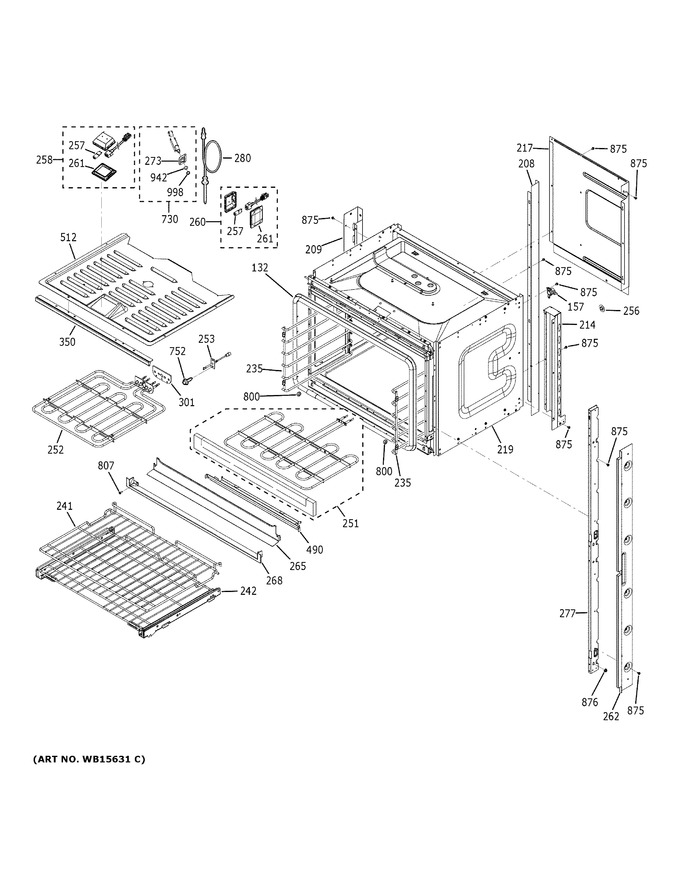

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 132 | WB35X32825 | Oven Door Gasket |
|
$ 44.83 | |||||
| 157 | WB24T10164 | Switch High Limit |
|
- | |||||
| 208 | WB34T10140 | Divider Air Double Oven |
|
- | |||||
| 209 | WB34X35265 | Channel Rear |
|
- | |||||
| 214 | WB55X10971 | Channel Rear |
|
- | |||||
| 217 | WB34T10136 | Cover - Upper Rear Duct |
|
- | |||||
| 219 | WB34X21913 | Retainer Insln Sde |
|
- | |||||
| 235 | WB48X21766 | Guide Ovn Rack Lt |
|
- | |||||
| 235 | WB48X21765 | Guide Ovn Rack Rt |
|
- | |||||
| 241 | WB48X34690 | Oven Rack Flat 30" |
|
- | |||||
| 242 | WB48X34734 | Rack Slide Pack 30" |
|
- | |||||
| 251 | WB44X21667 | Hidden Bake Element Kit |
|
- | |||||
| 252 | WB44X23640 | Element Broil Asm |
|
- | |||||
| 253 | WB21X10165 | Sensor Asm |
|
- | |||||
| 256 | WB01T10107 | Retainer Bolt |
|
- | |||||
| 257 | WB25T10102 | Lamp Halogen Bulb G9 |
|
- | |||||
| 258 | WB25X31223 | Side Halogen Lamp Asm |
|
- | |||||
| 260 | WB25X31221 | Top Halogen Lamp Asm |
|
- | |||||
| 261 | WB34X31317 | Oven Light Lens |
|
- | |||||
| 262 | WB07T10792 | Trim Vertical Side Ss |
|
- | |||||
| 265 | WB07X21783 | Trim Vent Lwr |
|
- | |||||
| 268 | WB07T10786 | Trim Bottom Cabinet |
|
- | |||||
| 268 | WB07T10791 | Trim Bottom Cabinet |
|
- | |||||
| 273 | WB34K5140 | Probe Cover |
|
- | |||||
| 277 | WB07X30797 | Vertical Brace Asm Rh |
|
- | |||||
| 277 | WB07X35285 | Vertical Brace Asm (lt) |
|
- | |||||
| 280 | WG02F05721 | Meat Probe (Replaces: WB20T10024) |
|
Immediately | $ 63.86 | ||||
| 301 | WB35X21972 | Gasket Broil Element |
|
- | |||||
| 350 | WB07T10787 | Trim Broil Element (bk) |
|
- | |||||
| 490 | WB55T10197 | Cover Hidden Bake |
|
- | |||||
| 512 | WB37T10024 | Plate - Top Oven |
|
- | |||||
| 730 | WB18X23585 | Meat Probe Receptacle And Harness |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 800 | WB01X21270 | Rack Guide Nut |
|
- | |||||
| 807 | WB1X1174 | Screw-nickle |
|
- | |||||
| 809 | WB01T10120 | Screw St 8-18x.750 (ni) |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 876 | WB01T10127 | Lock Nut |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 998 | WG02A00927 | Nut Meat Probe (Replaces: WB1X5572) |
|
$ 67.26 |
