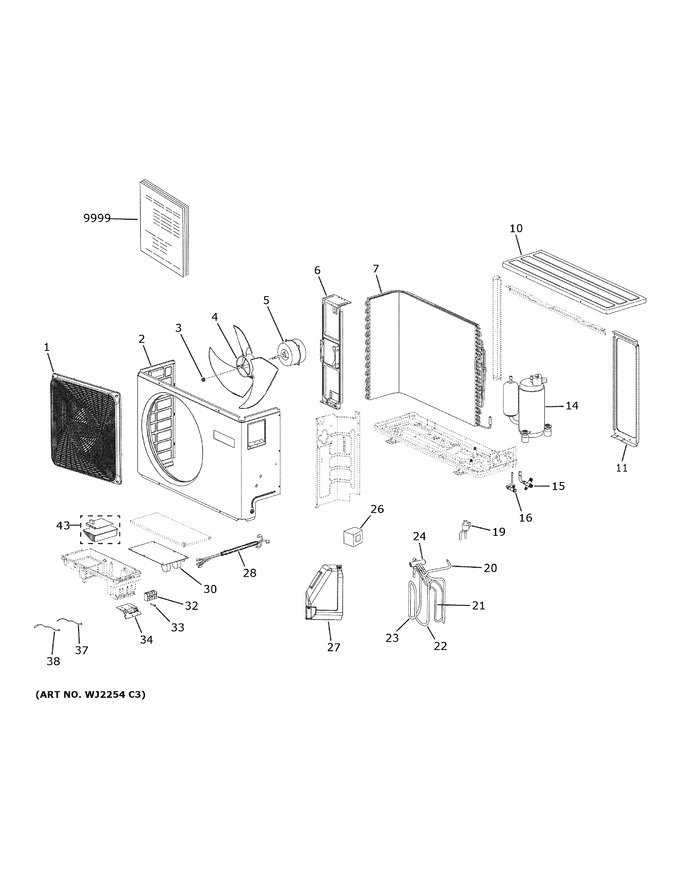

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X23191		Grille				$ 46.71
2	WJ76X23185		Casing		Appelez-nous	-
3	WJ01X22974		Flange Nut		Appelez-nous	-
4	WJ73X23190		Fan Blade				$ 24.18
5	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
6	WJ65X23207		Outdoor Fan Motor Bracket		Appelez-nous	-
7	WJ88X23205		Condenser				$ 291.16
10	WJ76X23200		Top Cover				$ 55.96
11	WJ76X23197		Rear Board Guard		Appelez-nous	-
14	WJ98X23204		Compressor				$ 435.12
15	WJ53X24974		Vapor Service Valve		Appelez-nous	-
16	WJ53X24973		Liquid Service Valve		Appelez-nous	-
19	WJ53X23148		Electronic Expansion Valve				$ 126.89
20	WJ53X23206		Exhaust Pipe		Appelez-nous	-
21	WJ53X23203		Air Inlet Pipe		Appelez-nous	-
22	WJ53X25634		Discharge Tube		Appelez-nous	-
23	WJ53X23199		Suction Tube		Appelez-nous	-
24	WJ53X23182		4-way Valve				$ 102.26
26	WJ26X23196		Reactor		Appelez-nous	-
27	WJ76X23201		Valve Cover		Appelez-nous	-
28	WJ35X23202		Outdoor Wiring Harness		Appelez-nous	-
30	WJ26X23209		Outdoor Power Control Board				$ 282.23
32	WJ27X22985		Terminal Block		Appelez-nous	-
33	WJ01X23198		Screw		Appelez-nous	-
34	WJ26X23184		Capacitor Board		Appelez-nous	-
37	WJ26X22984		Sensor Assembly Amb/dis/coil				$ 19.93
38	WJ26X23009		Suction Sensor				$ 22.15
43	WJ26X24101		Inverter Assembly		Appelez-nous	-
9999	31-5000276		Pm Install Instructions		Appelez-nous	-
