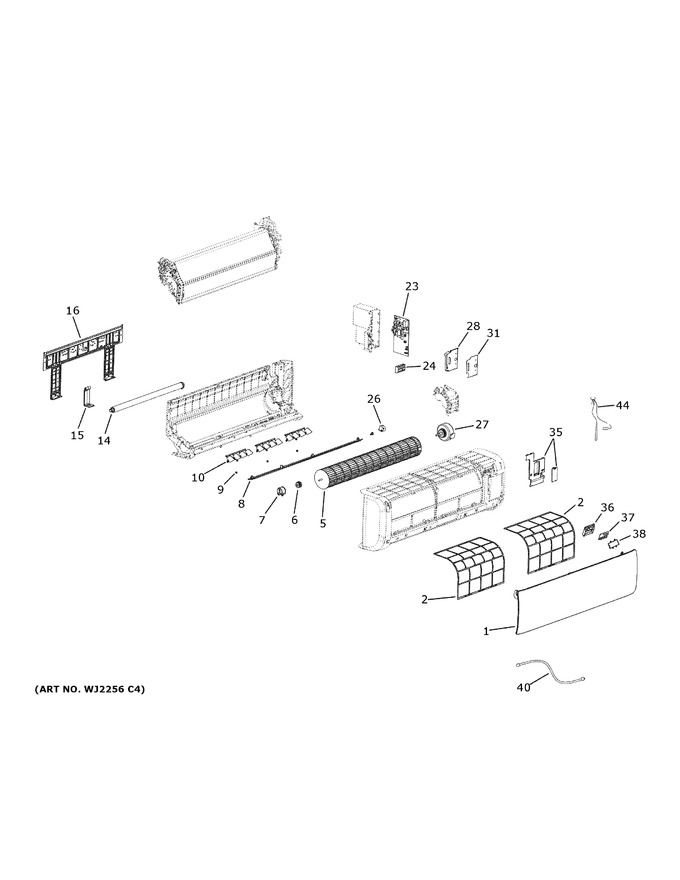

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X25599		Top Panel		Appelez-nous	-
2	WJ85X23253		Air Filter		Appelez-nous	-
5	WJ73X23255		Cross Flow Fan		Appelez-nous	-
6	WJ73X23028		Cross Flow Fan Bearing		Appelez-nous	-
7	WJ73X23050		Cross Flow Fan Bearing Cover		Appelez-nous	-
8	WJ71X24382		Horizontal Louver		Appelez-nous	-
9	WJ01X24240		Louver Bushing		Appelez-nous	-
10	WJ71X24383		Vertical Louver		Appelez-nous	-
14	WJ53X23256		Drain Pipe		Appelez-nous	-
15	WJ65X23248		Drain Pipe Bracket		Appelez-nous	-
16	WJ65X23056		Mounting Bracket		Appelez-nous	-
23	WJ26X23250		Indoor Power Control Board				$ 218.02
24	WJ26X23043		Terminal Block		Appelez-nous	-
26	WJ94X23258		Horizontal Stepper Motor		Appelez-nous	-
27	WJ94X23257		Indoor Fan Motor				$ 213.32
28	WJ76X24724		Electrical Box Cover (plastic)		Appelez-nous	-
31	WJ76X24363		Electrical Box Cover (metal)		Appelez-nous	-
35	WJ76X23254		Cover		Appelez-nous	-
36	WJ76X23235		Display Board Box		Appelez-nous	-
37	WJ26X23236		Display Panel				$ 51.91
38	WJ76X25954		Display Board Cover		Appelez-nous	-
40	WJ35X23134		Wiring Harness		Appelez-nous	-
44	WJ26X23042		Temperature Sensor Assembly				$ 19.55
59	WJ87X31369		Evaporator Coil		Appelez-nous	-
60	WJ76X31836		Casing Assembly		Appelez-nous	-
9999	49-5000277		Pm Owners Manual		Appelez-nous	-
9999	49-5000375		Pm Owners Manual		Appelez-nous	-
9999	31-5000523		Pm Other		Appelez-nous	-
9999	49-5000395		Pm Owners Manual		Appelez-nous	-
