SELECT A DIAGRAM

Case Parts


Freezer Door


Freezer Section


Freezer Shelves


Fresh Food Door - Lh


Fresh Food Door - Rh


Fresh Food Section


Fresh Food Shelves


Machine Compartment

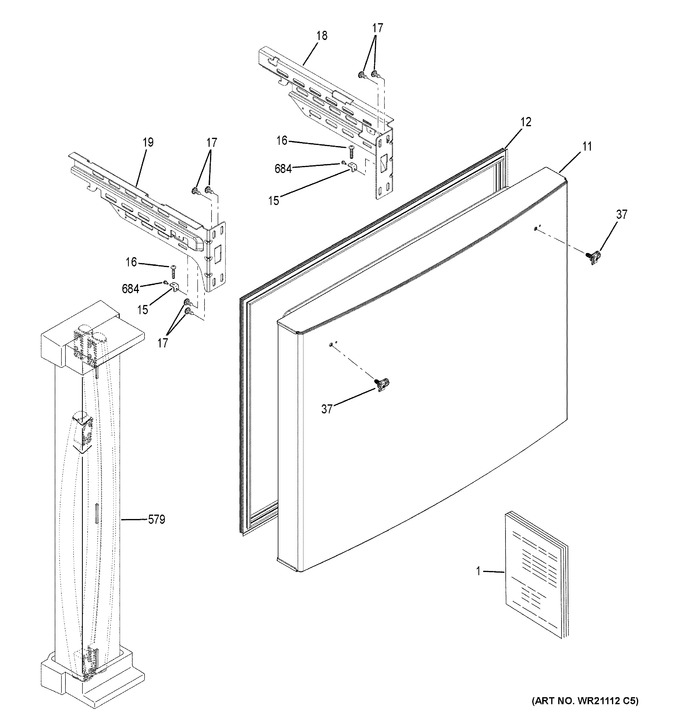

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1000395		Pm Mini Manual And Wiring		Appelez-nous	-
1	49-60803		Pm Use And Care Manual		Appelez-nous	-
11	WR78X30457		Door Foam Fz Asm Bb		Appelez-nous	-
12	WR14X30142		Freezer Door Gasket Dorian Gray		Appelez-nous	-
15	WR02X12870		Bracket Support		Appelez-nous	-
16	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
17	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.57
18	WR72X24852		Bracket Drawer Rh		Appelez-nous	-
19	WR72X24853		Bracket Drawer Lh		Appelez-nous	-
37	WR01A02427		Fastener Handle Asm   (Replaces: WR01X25070)			Immediately	$ 7.15
578	WR12X34309		Black Freezer Door Handle		Appelez-nous	-
579	WR12X30453		Pk Handle Kit Asm Black		Appelez-nous	-
684	WR01X10844		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
