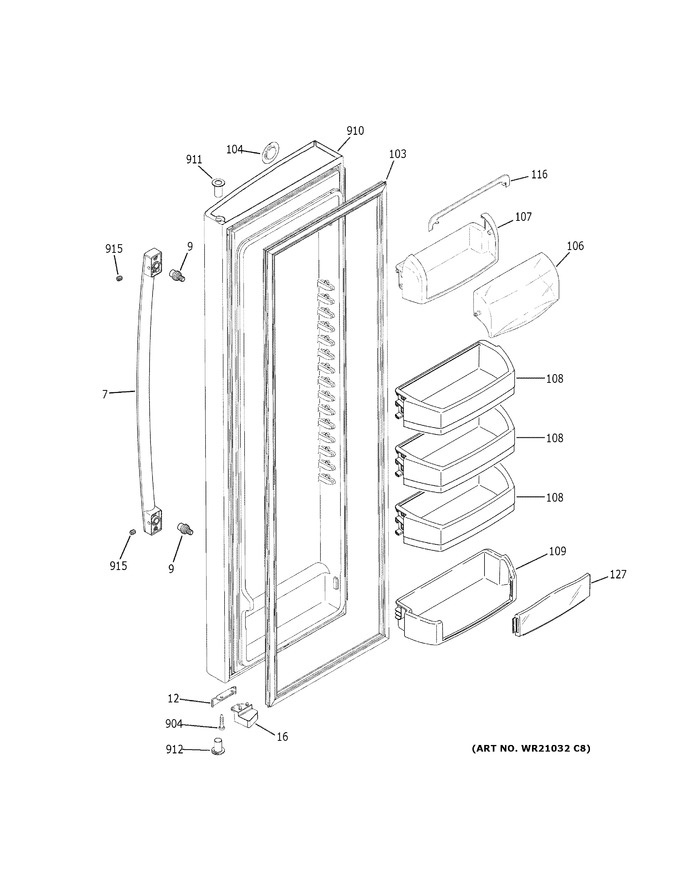

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X31510		White Handle Door Asm		Appelez-nous	-
9	WR01A01801		Door Handle Fastener   (Replaces: WR01X11007)			Immediately	$ 11.44
12	WR02X10690		Stop Door White		Appelez-nous	-
16	WR02X10637		Cam Closure Ff White		Appelez-nous	-
103	WR24X25767		Gasket Door Ff Ww		Appelez-nous	-
104	WR04X29994		Ge Badge		Appelez-nous	-
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 54.95
107	WR22X10041		Compartment Dairy		Appelez-nous	-
108	WR71X10781		Door Bin Ff Adj		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10979)				$ 34.93
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10761)			Immediately	$ 61.39
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X22624		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10955		Thimble Door		Appelez-nous	-
912	WR01X10952		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
