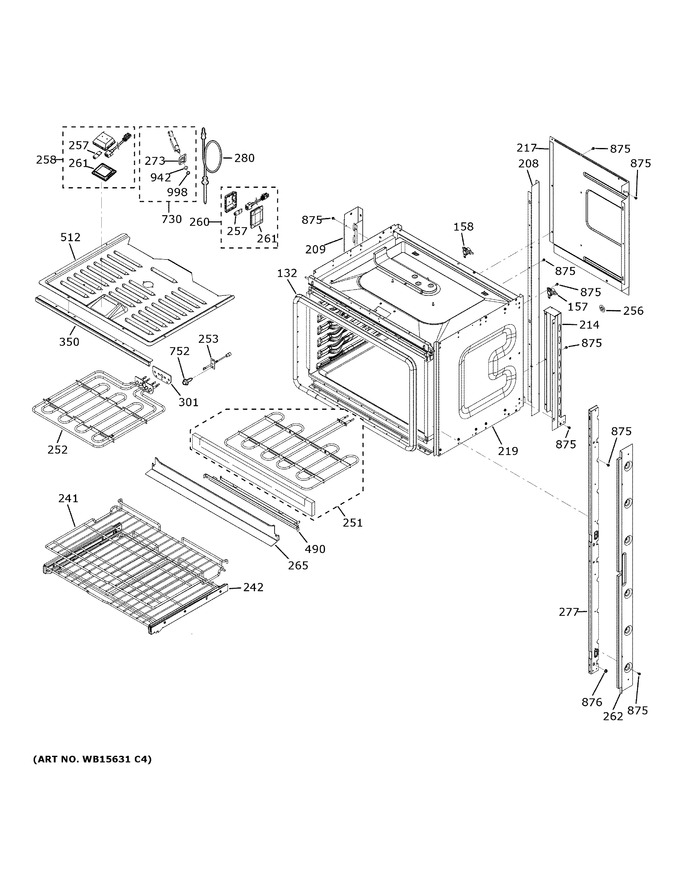

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
132	WB35X32825		Oven Door Gasket				$ 44.83
157	WB24T10164		Switch High Limit		Appelez-nous	-
158	WB24X35587		Switch Limit		Appelez-nous	-
208	WB34T10140		Divider Air Double Oven		Appelez-nous	-
209	WB34X35265		Channel Rear		Appelez-nous	-
214	WB55X10971		Channel Rear		Appelez-nous	-
217	WB34T10136		Cover - Upper Rear Duct		Appelez-nous	-
219	WB34X21913		Retainer Insln Sde		Appelez-nous	-
241	WB48X31582		Oven Rack		Appelez-nous	-
242	WB48X32924		Sliding Oven Rack Asm		Appelez-nous	-
251	WB44X21667		Hidden Bake Element Kit		Appelez-nous	-
252	WB44X23640		Element Broil Asm		Appelez-nous	-
253	WB21X10165		Sensor Asm		Appelez-nous	-
256	WB01T10107		Retainer Bolt		Appelez-nous	-
257	WB25T10102		Lamp Halogen Bulb G9		Appelez-nous	-
258	WB25X31221		Top Halogen Lamp Asm		Appelez-nous	-
260	WB25X31222		Halogen Lamp Asm		Appelez-nous	-
261	WB34X31317		Oven Light Lens		Appelez-nous	-
262	WB07T10792		Trim Vertical Side Ss		Appelez-nous	-
265	WB07X21783		Trim Vent Lwr		Appelez-nous	-
273	WB34K5140		Probe Cover		Appelez-nous	-
277	WB07X30797		Vertical Brace Asm Rh		Appelez-nous	-
277	WB07X35285		Vertical Brace Asm (lt)		Appelez-nous	-
280	WG02F05721		Meat Probe   (Replaces: WB20T10024)			Immediately	$ 63.86
301	WB35X21972		Gasket Broil Element		Appelez-nous	-
350	WB07T10787		Trim Broil Element (bk)		Appelez-nous	-
490	WB55T10197		Cover Hidden Bake		Appelez-nous	-
512	WB37T10024		Plate - Top Oven		Appelez-nous	-
730	WB18X23585		Meat Probe Receptacle And Harness		Appelez-nous	-
752	WB01X21742		Screw		Appelez-nous	-
809	WB01T10120		Screw St 8-18x.750 (ni)		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
876	WB01T10127		Lock Nut		Appelez-nous	-
942	WB1X5573		Washer		Appelez-nous	-
998	WG02A00927		Nut Meat Probe   (Replaces: WB1X5572)				$ 67.26

    View Diagram in Separate Window       Print Part List
