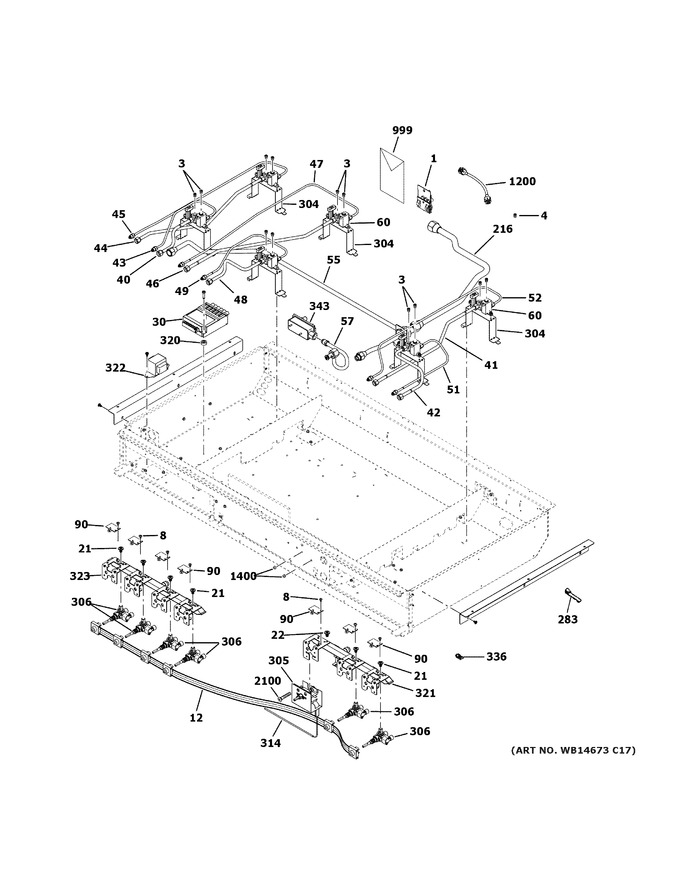

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB28K10553 | Hi Altitude Orifice Kit |
|
- | |||||
| 1 | WS01F02108 | Lp Conversion Kit (Replaces: WB28K10538) |
|
$ 132.60 | |||||
| 3 | WS01F01437 | Orifice Spud Lp Main (Replaces: WB28T10117) |
|
$ 4.17 | |||||
| 3 | WG02F01183 | Orifice Spud (ng Simmer) (Replaces: WB28T10159) |
|
Immediately | $ 15.88 | ||||
| 3 | WG02F01190 | Orifice Spud (ng Main) (Replaces: WB28T10155) |
|
$ 15.88 | |||||
| 3 | WS01F01438 | Orifice Spud Simmer Lp (Replaces: WB28T10118) |
|
Immediately | $ 4.17 | ||||
| 4 | WB28K10531 | Spud Orifice Griddle (ng) |
|
- | |||||
| 4 | WB28K10529 | Spud Orifice Griddle (lp) |
|
- | |||||
| 8 | WS01A01212 | Screw 8-32 (Replaces: WB01K10002) |
|
$ 88.13 | |||||
| 12 | WB18X31498 | Harness Burner Box |
|
- | |||||
| 21 | WB01K10067 | Scr 8 Hd 1/4 - 20 |
|
- | |||||
| 22 | WB01K10109 | Scr 8 Hd 1/4-20 |
|
- | |||||
| 30 | WB13X27503 | Module Spark |
|
- | |||||
| 40 | WB28K10518 | Tube And Nut Asm |
|
- | |||||
| 41 | WB28K10493 | Tube And Nut Asm |
|
- | |||||
| 42 | WB28K10494 | Tube And Nut Asm |
|
- | |||||
| 43 | WB28K10522 | Tube And Nut Asm |
|
- | |||||
| 44 | WB28K10517 | Tube And Nut Asm |
|
- | |||||
| 45 | WB28K10521 | Tube And Nut Asm |
|
- | |||||
| 46 | WB28K10519 | Tube And Nut Asm |
|
- | |||||
| 47 | WB28K10524 | Tube And Nut Asm |
|
- | |||||
| 48 | WB28K10520 | Tube And Nut Asm |
|
- | |||||
| 49 | WB28K10523 | Tube And Nut Asm |
|
- | |||||
| 51 | WB28K10497 | Tube And Nut Asm |
|
- | |||||
| 52 | WB28K10498 | Tube And Nut Asm |
|
- | |||||
| 55 | WB28K10525 | Tee Swaged Asm |
|
- | |||||
| 57 | WB28K10500 | Tube Griddle And Nut Asm |
|
- | |||||
| 60 | WB28T10114 | Burner Injet |
|
- | |||||
| 90 | WS01F01723 | Led Asm (Replaces: WB25K10012) |
|
$ 97.21 | |||||
| 216 | WB28K10665 | Tube Cooktop Supply Asm |
|
- | |||||
| 283 | WB2K38 | Clip Wire |
|
- | |||||
| 304 | WB02K10192 | Bracket Injet |
|
- | |||||
| 305 | WS01F01661 | Switch Thermostat (Replaces: WB24K10047) |
|
$ 162.13 | |||||
| 306 | WB21K10162 | Valve Dual |
|
- | |||||
| 314 | WS01F02656 | Thermostat (Replaces: WB21K10124) |
|
Immediately | $ 156.86 | ||||
| 320 | WB1K10 | Grommet Handle |
|
- | |||||
| 321 | WB28K10502 | Pipe Manifold Asm Rt |
|
- | |||||
| 322 | WS01F02728 | Transformer (Replaces: WB27K10298) |
|
$ 188.64 | |||||
| 323 | WB28K10526 | Pipe Manifold Asm Lf |
|
- | |||||
| 336 | WB2X7066 | Clip Wire |
|
- | |||||
| 343 | WB19K10032 | Valve Safety |
|
- | |||||
| 999 | 31-11126 | Pm Install Instructions |
|
- | |||||
| 999 | 31-17282 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 999 | 31-10694 | Pm Install Anti-tip Brkt |
|
- | |||||
| 999 | WG02A00297 | Lubricant Cleaner (Replaces: WB02T10303) |
|
$ 77.35 | |||||
| 999 | 49-85247 | Pm Owners Manual |
|
- | |||||
| 999 | 31-10693 | Pm Conversion Steps |
|
- | |||||
| 1200 | WB18K10047 | Harness Hv |
|
- | |||||
| 1400 | WB01T10086 | Nut Keps 6-32 Special |
|
- | |||||
| 2100 | WB01K10101 | Scr 8-32 Ca Trp 7/8 S Ni |
|
- |
