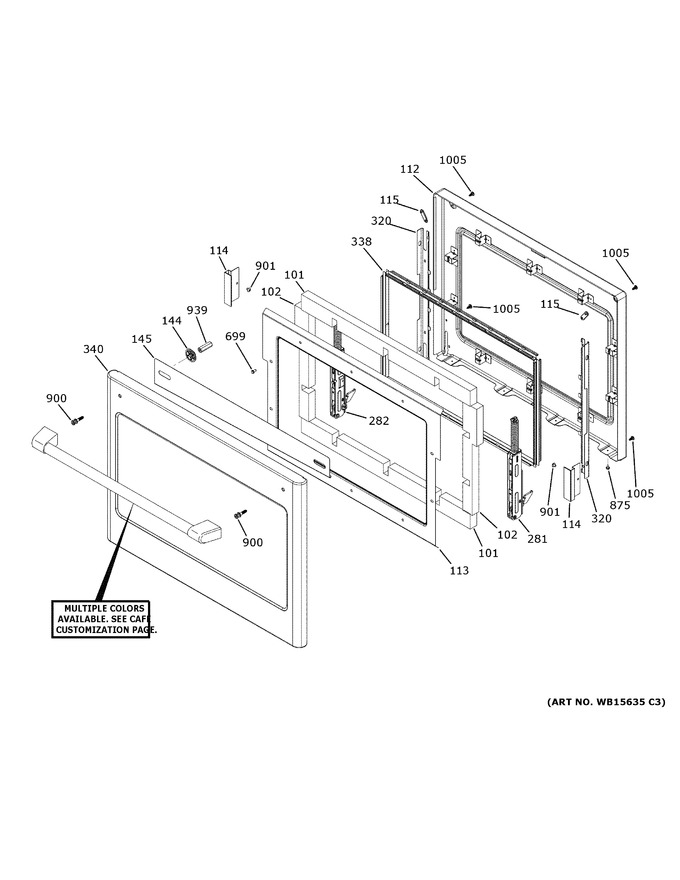

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35X21737		Insulation Dr Top		Appelez-nous	-
102	WB35X31513		Door Side Insulation		Appelez-nous	-
112	WB63X32569		Oven Door Liner Asm		Appelez-nous	-
113	WB34X31516		Door Insulation Retainer		Appelez-nous	-
114	WB34X34996		Bracket And Tape Asm		Appelez-nous	-
115	WB02X32816		Door Liner Plug		Appelez-nous	-
144	WB02T10524		Spacer Door Hdl		Appelez-nous	-
145	WB34T10142		Deflector Oven Door		Appelez-nous	-
281	WB10X33900		Soft Close Hinge Right Door		Appelez-nous	-
282	WB10X33911		Soft Close Hinge Left Door		Appelez-nous	-
285	WB10X44866		Bracket Hinge		Appelez-nous	-
320	WB34X28482		Liner Support		Appelez-nous	-
338	WB56X27662		Window Pack Asm		Appelez-nous	-
340	WB56X31913		White Slate Outer Door Asm		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
701	WB01X21650		Scr 8-18 Ab Trt20nbs 5/8		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
900	WB01X31573		Mounting Stud		Appelez-nous	-
901	WB01X34992		Screw 10-32 Mch Trt20 I/4		Appelez-nous	-
939	WB01X31762		Reinforcement Spacer		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
