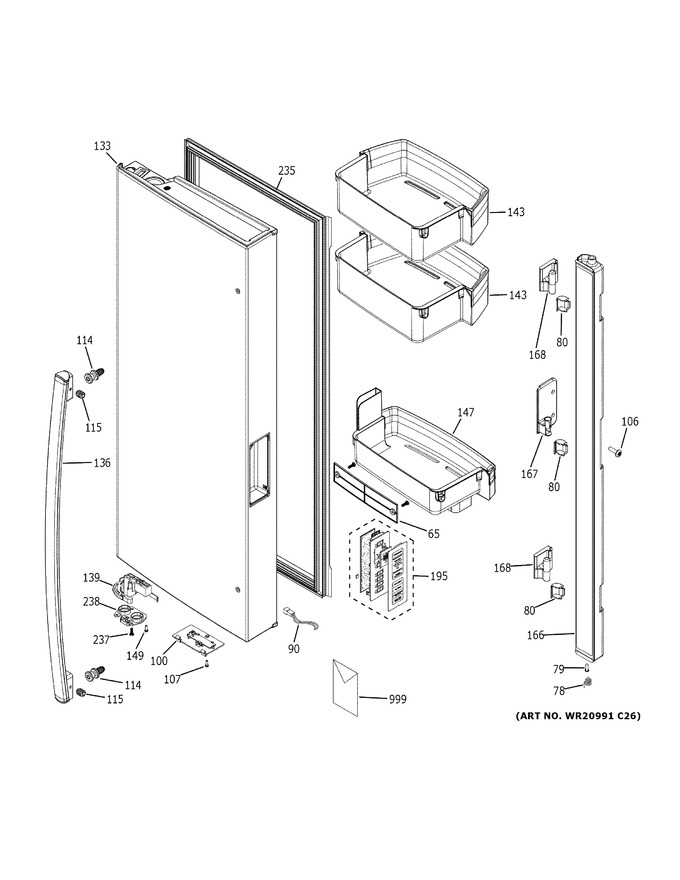

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 65 | WR02X13730 | Cover Harness |
|
- | |||||
| 78 | WG03L05095 | Spring Hinge Mullion (Replaces: WR01X11052) |
|
Immediately | $ 10.86 | ||||
| 79 | WR01X11053 | Sleeve Spring Mullion |
|
- | |||||
| 80 | WR02X13739 | Hinge Cap |
|
- | |||||
| 90 | WR23X10755 | Harness Led Jumper |
|
- | |||||
| 100 | WR55X23636 | Cover Led Fz Asm |
|
- | |||||
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 107 | WW01A00097 | Screw (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 114 | WR01A01801 | Door Handle Fastener (Replaces: WR01X11007) |
|
Immediately | $ 12.71 | ||||
| 115 | WG03A01608 | Set Screw (Replaces: WR01X11014) |
|
Immediately | $ 6.35 | ||||
| 133 | WR78X26294 | Door Foam Ff Nd Asm Es |
|
- | |||||
| 136 | WR12X31641 | Stainless Refrigerator Handle |
|
- | |||||
| 139 | WR11X32040 | Refrigerator Door Closure Left |
|
- | |||||
| 143 | WR71X11055 | Bin Gal Lh Ff Asm |
|
- | |||||
| 147 | WR71X11054 | Bin Cond Lh Ff Asm |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 166 | WR17X13240 | Dorian Gray Articulating Mullion |
|
- | |||||
| 167 | WR13X10984 | Hinge Center Mullion |
|
- | |||||
| 168 | WR13X10985 | Hinge Mullion |
|
- | |||||
| 195 | WR55X22124 | Control Lh Door Side Asm |
|
- | |||||
| 235 | WG03L09792 | Gasket Ff Dgy (Replaces: WR14X10377) |
|
$ 145.45 | |||||
| 237 | WR01X11032 | Scr 10-24 Ab Rnt 20 5/8 |
|
- | |||||
| 238 | WR02X13634 | Stop Door Rh/lh Asm |
|
- | |||||
| 999 | 31-51962 | Pm Mini Manual Service |
|
- |
