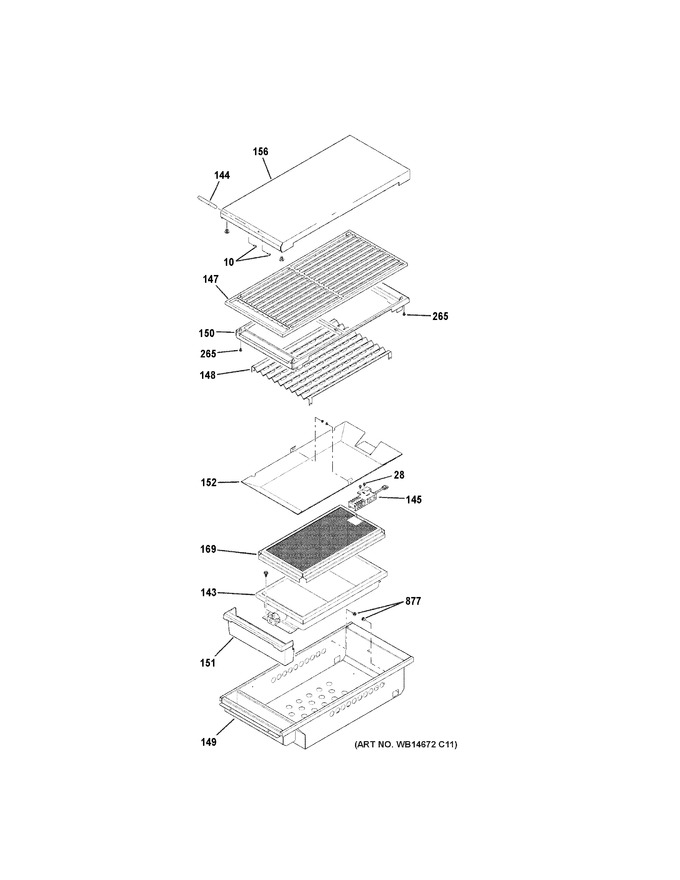

Gas & Burner Parts
Grill Assembly
Oven Cavity Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WG02A00189 | Screw 8-32 Mch Pnt15 (Replaces: WB01T10104) |
|
Immediately | $ 6.35 | ||||
| 28 | WB1K50 | Screw Mtg Igniter |
|
- | |||||
| 143 | WB28K10505 | Burner Ir |
|
- | |||||
| 144 | WB15K10088 | Handle Cover |
|
- | |||||
| 145 | WS01F01204 | Igniter Glowbar (Replaces: WB13K10030) |
|
Immediately | $ 132.75 | ||||
| 147 | WB32K10056 | Grate Grill |
|
- | |||||
| 148 | WB36K10919 | Baffle Grill |
|
- | |||||
| 149 | WB49K10041 | Grill Body Weld |
|
- | |||||
| 150 | WB07K10419 | Frame Grill Grate Asm |
|
- | |||||
| 151 | WB49K10038 | Trough Grease Asm |
|
- | |||||
| 152 | WB34K10131 | Reflector Asm |
|
- | |||||
| 156 | WB07K10432 | Cover |
|
- | |||||
| 169 | WB31K10226 | Frame Mesh Asm |
|
- | |||||
| 265 | WB02K10231 | Foot Grate Grill |
|
- | |||||
| 877 | WB00X24074 | Instruction Sheet |
|
- |
