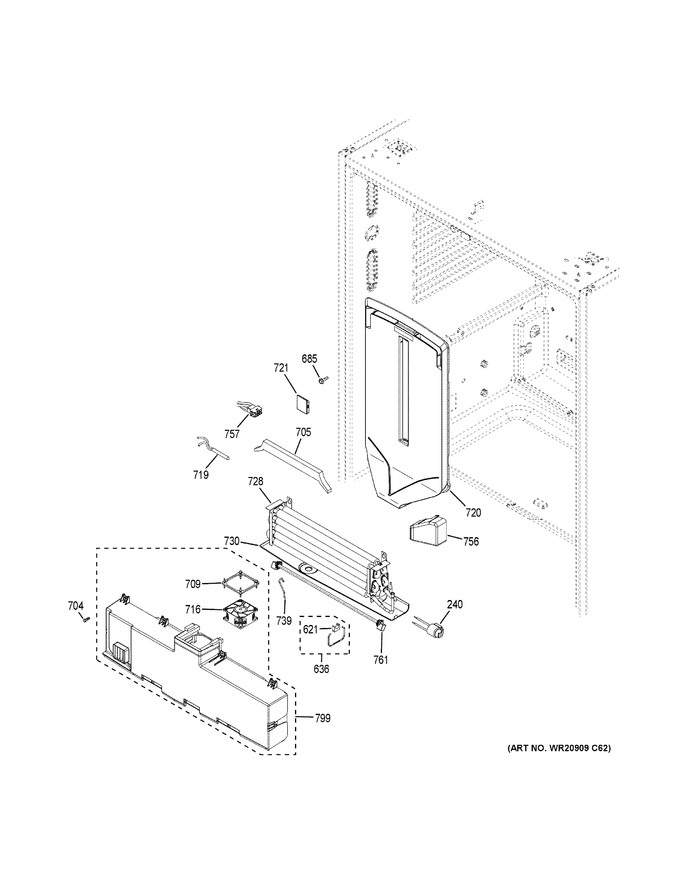

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
240	WR50X10109		Thermostat Defrost Ff		Appelez-nous	-
621	WR02X10518		Holder Element		Appelez-nous	-
636	WR02X13678		Holder Element Asm		Appelez-nous	-
685	WR02X29370		Screw 8-18 Ab Hxw 1/2 S		Appelez-nous	-
704	WR01X11061		Scr 8-18 Hi/lo Hwx 3/4		Appelez-nous	-
705	WR02X29333		Foam Seal		Appelez-nous	-
709	WR02X30166		Fresh Food Fan Mounting Gasket		Appelez-nous	-
716	WR60X24723		Fan Dc Ff Evap		Appelez-nous	-
719	WR55X11152		Sensor Temperature		Appelez-nous	-
720	WR17X28922		Fresh Food Duct Tower		Appelez-nous	-
721	WR02X29328		Center Track Screw Cover		Appelez-nous	-
728	WR85X10154		Evap & Tube Asm Ff		Appelez-nous	-
730	WR17X13091		Trough Drain Ff		Appelez-nous	-
739	WR51X10133		Heater Conduction Ff		Appelez-nous	-
756	WR17X28921		Fresh Food Fan Connector Cover		Appelez-nous	-
757	WR23X23626		Heater Harness Ff		Appelez-nous	-
761	WR51X10132		Heater Def Asm Ff		Appelez-nous	-
799	WR17X32108		Fresh Food Evaporator Cover W/ Fan		Appelez-nous	-
