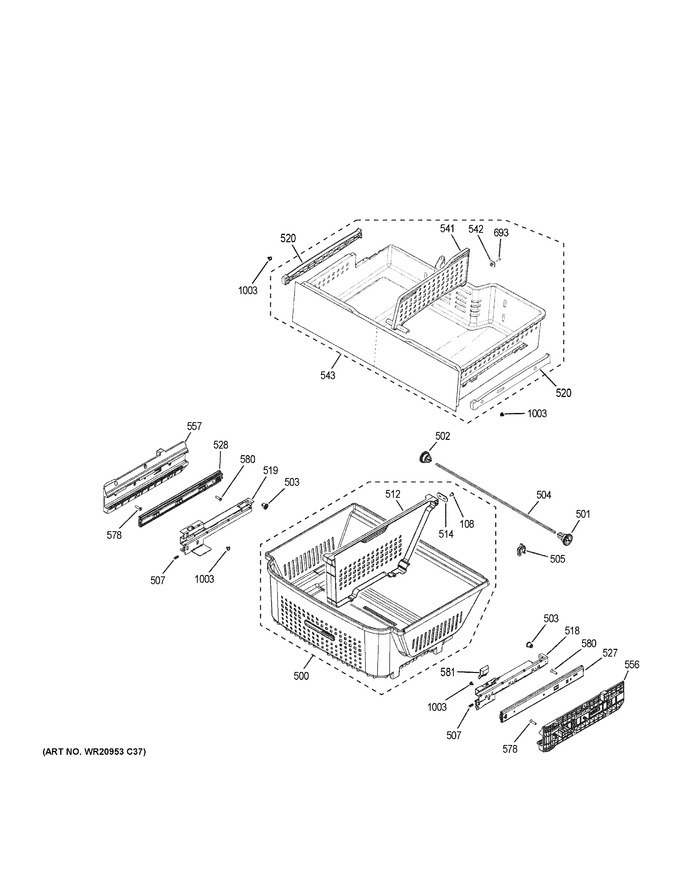

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
108	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
500	WR21X10249		Basket Bottom Asm		Appelez-nous	-
501	WG03L05151		Gear Lwr Drw Rh   (Replaces: WR02X13629)				$ 12.71
502	WG03L05152		Gear Lwr Drw Lh   (Replaces: WR02X13630)				$ 19.06
503	WG03F03819		Connnector Gear Pinion   (Replaces: WR02X13631)				$ 6.35
504	WR02X13670		Crossbar Pinion		Appelez-nous	-
505	WR01X11023		Pin Cross Bar		Appelez-nous	-
507	WR01X11036		Screw Set Door Fz		Appelez-nous	-
512	WR02X13661		Divider Bottom Basket Fz		Appelez-nous	-
514	WR02X13674		Support Slide Fz		Appelez-nous	-
518	WR17X13144		Slide Bracket Asm Rh		Appelez-nous	-
519	WR17X13145		Slide Bracket Asm Lh		Appelez-nous	-
520	WR72X27635		Glide Support Lh & Rh		Appelez-nous	-
527	WR72X10427		Slide Lower Fz Rh		Appelez-nous	-
528	WR72X10428		Slide Lower Fz Lh		Appelez-nous	-
541	WR02X13705		Divider Basket Upper Fz		Appelez-nous	-
542	WR02X13706		Stopper Divider Fz Upper		Appelez-nous	-
543	WR32X26289		Basket Upper Asm		Appelez-nous	-
556	WR72X20645		Holder Slide Fz Rh		Appelez-nous	-
557	WR72X20644		Holder Slide Fz Lh		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
580	WR01X11013		Scr 10-18 Flt20 3/4 S		Appelez-nous	-
581	WG03F01809		Striker Light Switch   (Replaces: WR02X13632)				$ 6.09
693	WR01X10593		Scr 8-18 Ab Ihxw 3/4 S		Appelez-nous	-
1003	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
