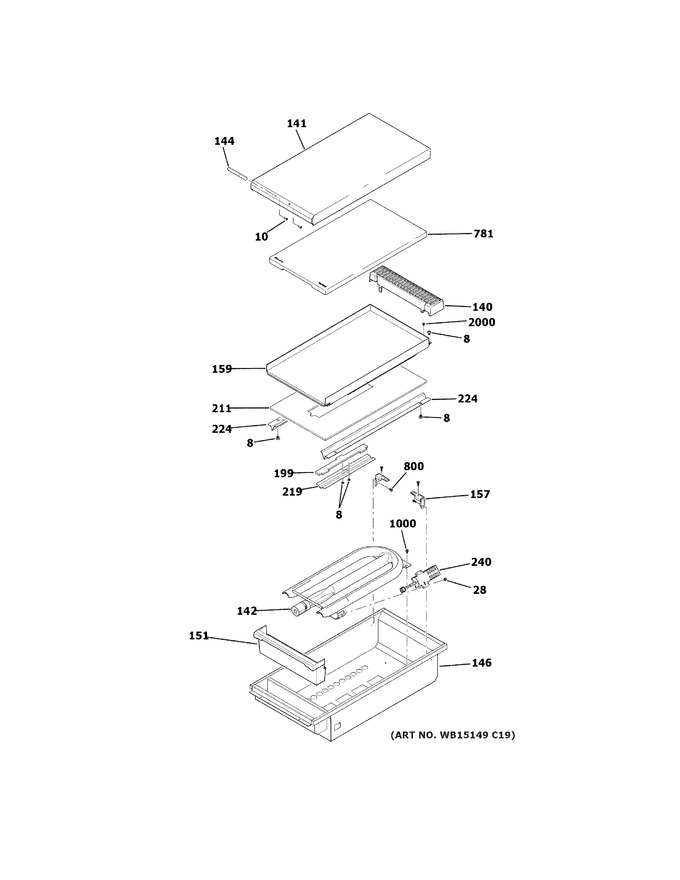

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 88.13
10	WG02A00189		Screw 8-32 Mch Pnt15   (Replaces: WB01T10104)			Immediately	$ 6.35
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
140	WB07K10294		Vent Griddle		Appelez-nous	-
140	WB35K10131		Ft Insul Door Btm 27"		Appelez-nous	-
141	WB07K10431		Cover		Appelez-nous	-
141	WB35K10133		Rr Insul Door Top 27"		Appelez-nous	-
142	WB35K10130		Ft Insul Door Top 27"		Appelez-nous	-
142	WB28K10636		Burner Griddle		Appelez-nous	-
144	WB15K10088		Handle Cover		Appelez-nous	-
146	WB49K10040		Griddle Body Weld		Appelez-nous	-
151	WB49K10014		Trough Grease Asm		Appelez-nous	-
157	WB02K10208		Bracket Griddle		Appelez-nous	-
159	WB32K10042		Plate Griddle Weld Asm		Appelez-nous	-
199	WB49K10039		Insulation		Appelez-nous	-
211	WB07K10295		Plate Griddle		Appelez-nous	-
219	WB49K10015		Shield Thermostat Bulb		Appelez-nous	-
224	WB02K10209		Bracket Support		Appelez-nous	-
240	WB13X25261		Igniter Glowbar		Appelez-nous	-
781	WS01A00006		Butcher Block (griddle)   (Replaces: WB31K10223)				$ 126.55
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1000	WB01K10086		Scr 8-18 Ab Trp 3/8 Ss		Appelez-nous	-
2000	WB01K10100		Scr 10-32 Trp 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
