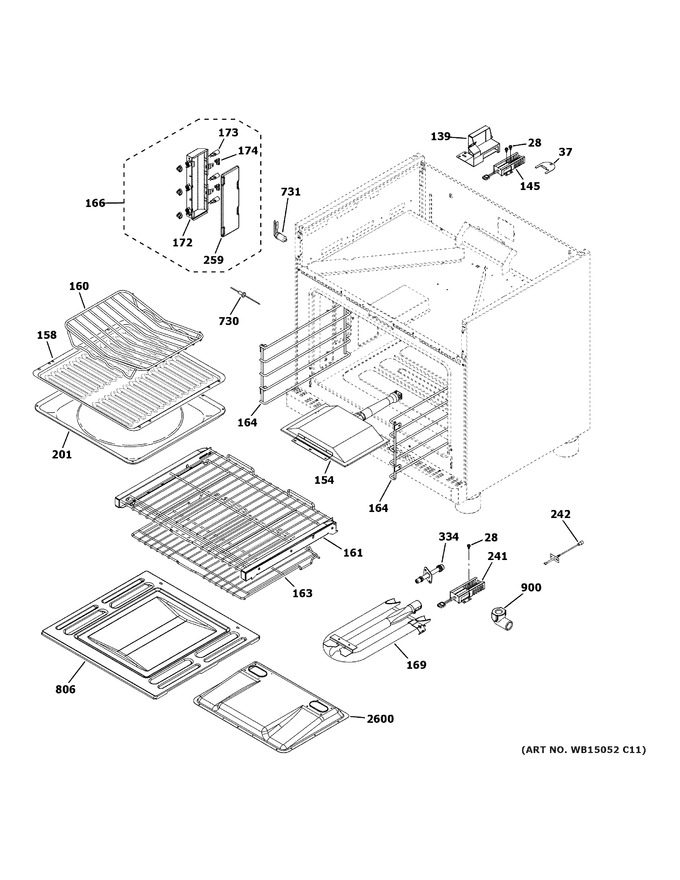

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 28 | WB1K50 | Screw Mtg Igniter |
|
- | |||||
| 37 | WB34X24753 | Cover Ignitor |
|
- | |||||
| 139 | WB02K10300 | Bracket Glowbar |
|
- | |||||
| 145 | WS01F01204 | Igniter Glowbar (Replaces: WB13K10030) |
|
Immediately | $ 132.75 | ||||
| 154 | WB28K10653 | Burner Broil |
|
- | |||||
| 158 | WB49K10017 | Rack Broiler Pan |
|
- | |||||
| 160 | WB48K10020 | Rack Convection Roast |
|
- | |||||
| 161 | WB48K10035 | Rack Oven Slide Asm |
|
- | |||||
| 163 | WB48K10024 | Oven Rack |
|
- | |||||
| 164 | WB02K10395 | Guide Oven Rack Lh |
|
- | |||||
| 164 | WB02K10394 | Guide Oven Rack Rh |
|
- | |||||
| 166 | WB08K10016 | Lamp Halogen Asm |
|
- | |||||
| 169 | WB28K10669 | Burner Griddle |
|
- | |||||
| 172 | WB02T10298 | Reflector Light |
|
- | |||||
| 173 | WG02F00848 | Lamp Halogen 20w (Replaces: WB25T10064) |
|
Immediately | $ 20.65 | ||||
| 174 | WB02T10297 | Clip Retainer Glass |
|
- | |||||
| 201 | WB49K10018 | Pan Broiler |
|
- | |||||
| 241 | WB13X25264 | Igniter Glowbar |
|
- | |||||
| 242 | WB21T10019 | Sensor Asm |
|
- | |||||
| 259 | WG02L02869 | Crystal Lamp (Replaces: WB25T10063) |
|
$ 78.41 | |||||
| 334 | WB02K10309 | Elbow Bake Orifice |
|
- | |||||
| 730 | WS01F02632 | Probe Thermistor (Replaces: WB20K10030) |
|
Immediately | $ 93.58 | ||||
| 731 | WS01F02316 | Probe Receptacle (Replaces: WB20K10032) |
|
$ 135.32 | |||||
| 806 | WS01L06141 | Oven Bottom (Replaces: WB35K10196) |
|
$ 87.41 | |||||
| 900 | WB02K10306 | Elbow Orifice Broil |
|
- | |||||
| 2600 | WB53K10037 | Oven Top |
|
- |
