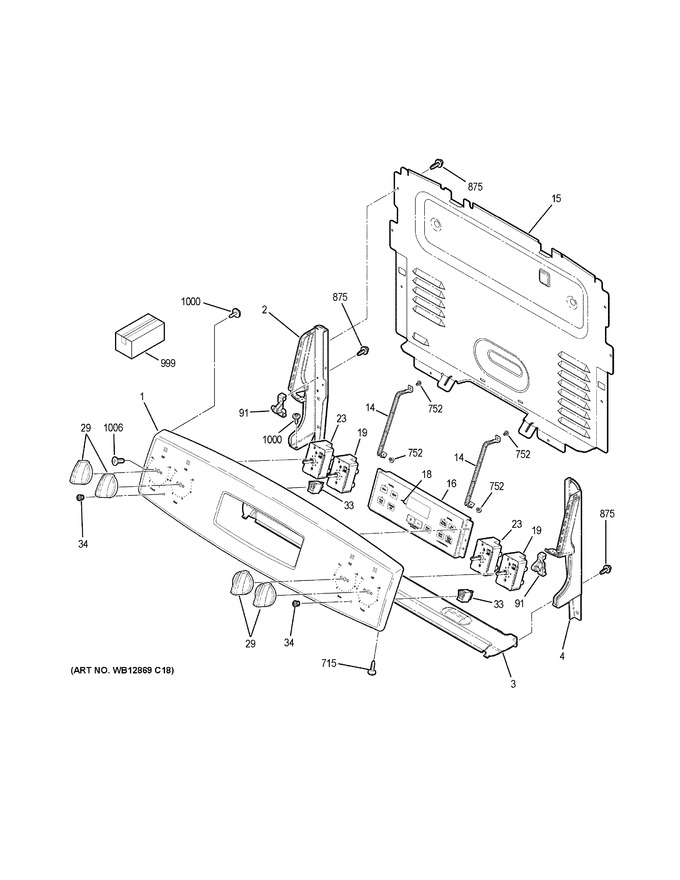

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB07X27881		Trim And Brackets Asm		Appelez-nous	-
1	229C6298P004		Label Wire Diagram		Appelez-nous	-
2	WB07X27823		End Plate Lt Bk		Appelez-nous	-
3	WB02X28994		Shield Heat Bkgd		Appelez-nous	-
4	WB07X27820		End Plate Rt Bk		Appelez-nous	-
14	WB34X20080		Bracket Control		Appelez-nous	-
15	WB34X29564		Control Panel Back Cover		Appelez-nous	-
16	WB27X29091		Oven Control To9 White Led		Appelez-nous	-
18	WB27T11511		Faceplate Graphics (bk)		Appelez-nous	-
19	WG02F04192		Inf Sw Control (2500w)   (Replaces: WB24T10025)			Immediately	$ 65.23
23	WB24T10022		Inf Switch Control 1250w				$ 48.75
29	WB03T10343		Knob Infinite		Appelez-nous	-
33	WG02F04389		Light Indicator Pilot   (Replaces: WB27T10627)				$ 9.25
34	WB25X24023		Lens		Appelez-nous	-
91	WB10T10116		Pin Rangetop Hinge		Appelez-nous	-
715	WB1K60		Screw 8-18 (bk) 1/2 S		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
999	49-80837		Pm Quick Guide		Appelez-nous	-
999	31-10617		Instruction Install		Appelez-nous	-
999	31-17295		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	31-11105		Pm Instructions Install		Appelez-nous	-
999	31-10781		Pm Install Instructions		Appelez-nous	-
999	31-2000911		Pm Install Instructions		Appelez-nous	-
1000	WB01T10126		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
1006	WB01X23501		Scr 8-32 Tt Flp .270		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
