SELECT A DIAGRAM

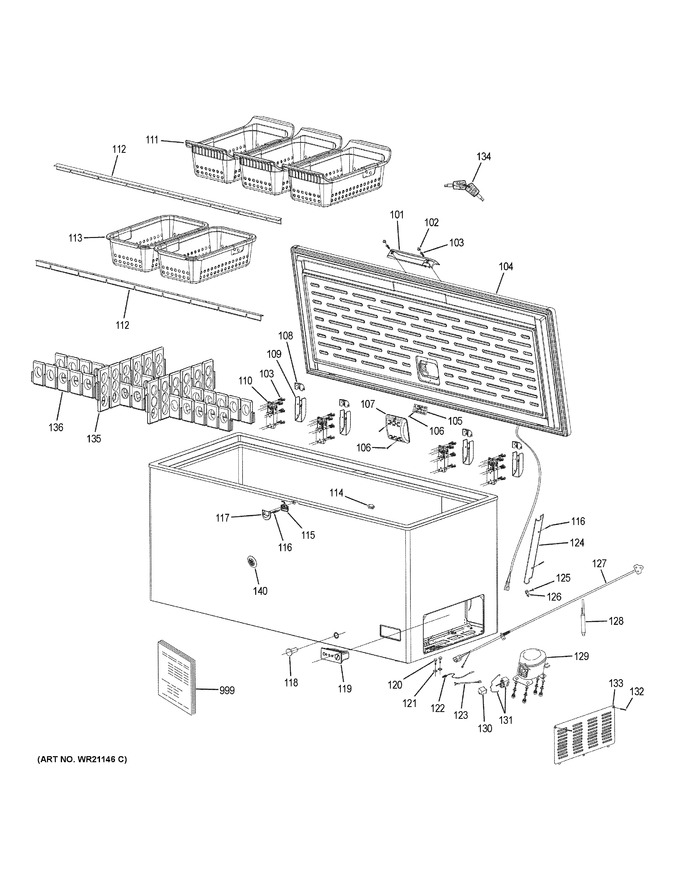

Freezer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WR12X28041 | Freezer Door - Handle White |
|
- | |||||
| 102 | WR01X28054 | Cover Screw White |
|
- | |||||
| 103 | WR01X27824 | Screw M5 X 16 |
|
- | |||||
| 104 | WR78X28042 | Freezer Door & Gasket White 22' |
|
- | |||||
| 105 | WR55X28033 | Led Light |
|
- | |||||
| 106 | WR01X28030 | Screw St3.5 X 13 |
|
- | |||||
| 107 | WR13X28032 | Led Light Cover |
|
- | |||||
| 108 | WR13X28036 | Hinge Cover Top White |
|
- | |||||
| 109 | WR13X28038 | Hinge Cover Bottom White |
|
- | |||||
| 110 | WR13X28034 | Hinge Freezer Door 22' |
|
- | |||||
| 111 | WR71X28047 | Freezer Basket Upper |
|
- | |||||
| 112 | WR71X28028 | Shelf Support |
|
- | |||||
| 113 | WR71X28049 | Freezer Basket Lower |
|
- | |||||
| 114 | WR01X28051 | Drain Plug Interior |
|
$ 1.37 | |||||
| 115 | WR01X28052 | Door Lock |
|
- | |||||
| 116 | WR01X27789 | Screw St3.5 X 9.5 |
|
- | |||||
| 117 | WR13X28055 | Cover Door Lock |
|
- | |||||
| 118 | WR01X27970 | Drain Plug Exterior |
|
- | |||||
| 119 | WR09X28056 | Control Panel |
|
- | |||||
| 120 | WR01X27844 | Grounding Screw M4 X 8 |
|
- | |||||
| 121 | WR01X27831 | Washer |
|
- | |||||
| 122 | WR55X28029 | Sensor |
|
- | |||||
| 123 | WR55X28057 | Compressor Harness |
|
- | |||||
| 124 | WR13X28040 | Harness Door Cover |
|
- | |||||
| 125 | WR01X27825 | Screw St4.2 X 13 |
|
- | |||||
| 126 | WR01X27816 | Clamp Power Cord |
|
- | |||||
| 127 | WR55X28031 | Power Cord |
|
- | |||||
| 128 | WR87X28050 | Dryer |
|
- | |||||
| 129 | WR87X28059 | Compressor |
|
- | |||||
| 130 | WR87X28061 | Capacitor |
|
- | |||||
| 131 | WR87X28060 | Combo Device & Clip |
|
- | |||||
| 132 | WR01X27843 | Screw St3.5 X 13 |
|
- | |||||
| 133 | WR14X28062 | Access Cover |
|
- | |||||
| 134 | WR01X28053 | Door Key |
|
$ 12.25 | |||||
| 135 | WR14X28044 | Freezer Divider Short |
|
- | |||||
| 136 | WR14X28045 | Freezer Divider Long |
|
- | |||||
| 140 | WR04X10222 | Badge Asm Ge |
|
- | |||||
| 999 | 49-60760 | Pm Owners & Install |
|
- | |||||
| 999 | 31-51956 | Pm Mini Manual |
|
- |
