Cabinet (1)
Cabinet (2)
Controls & Dispenser
Front Panel & Door
Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

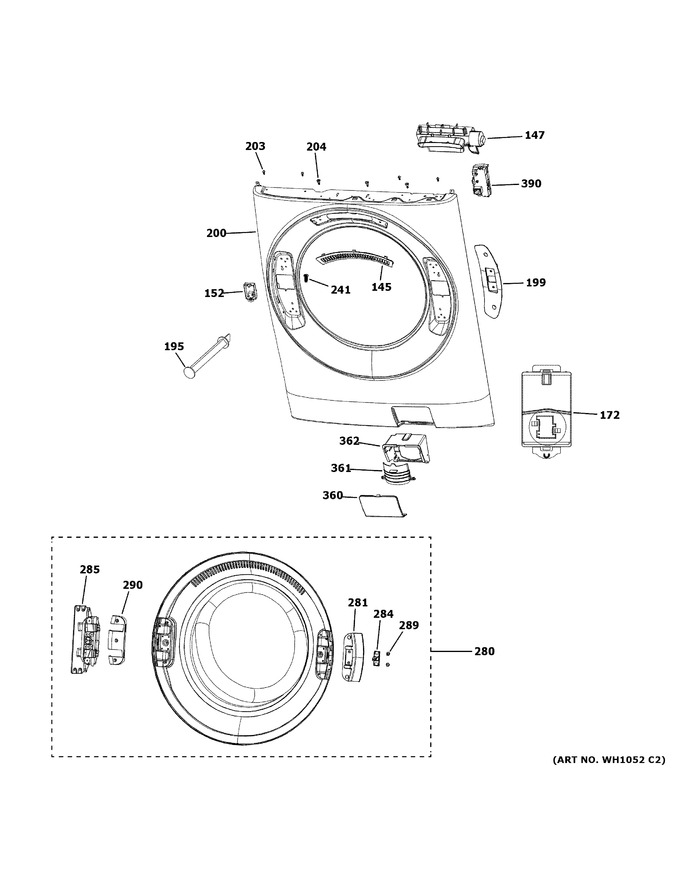

| 145 | WH13X29634 | Vent Cover |
|
- | |||||
| 146 | WH02X26240 | Screw |
|
- | |||||
| 147 | WH16X29509 | Damper Vent |
|
- | |||||
| 152 | WH01X30359 | Door Latch Harness Holder Diamond Gray |
|
- | |||||
| 172 | WH01X30352 | Door Lock Harness Cover |
|
- | |||||
| 195 | WH01X30057 | Door Reversal/lock Bar |
|
- | |||||
| 199 | WH01X30344 | Latch Cover Diamond Gray |
|
- | |||||
| 200 | WH13X30345 | Front Panel Diamond Gray |
|
- | |||||
| 203 | WH02X30339 | Ground Screw |
|
- | |||||
| 204 | WH02X26236 | Screw M4*10 |
|
- | |||||
| 241 | WH02X30337 | Door Hinge Screw |
|
- | |||||
| 280 | WH10X29544 | Washer Door |
|
- | |||||
| 281 | WH13X29611 | Door Strike Support |
|
- | |||||
| 284 | WH01X32580 | Door Latch |
|
- | |||||
| 284 | WH01X29659 | Door Strike |
|
- | |||||
| 285 | WH13X29632 | Door Hinge |
|
- | |||||
| 289 | WH02X29618 | Screw Door Strike |
|
- | |||||
| 290 | WH01X29637 | Door Hinge Cover |
|
- | |||||
| 360 | WH11X30366 | Drain Pump Access Door Diamond Gray |
|
- | |||||
| 361 | WH11X29650 | Drain Pump Funnel |
|
- | |||||
| 362 | WH11X29644 | Drain Pump Housing |
|
- | |||||
| 390 | WH01X29528 | Door Lock |
|
- |
