Body Parts

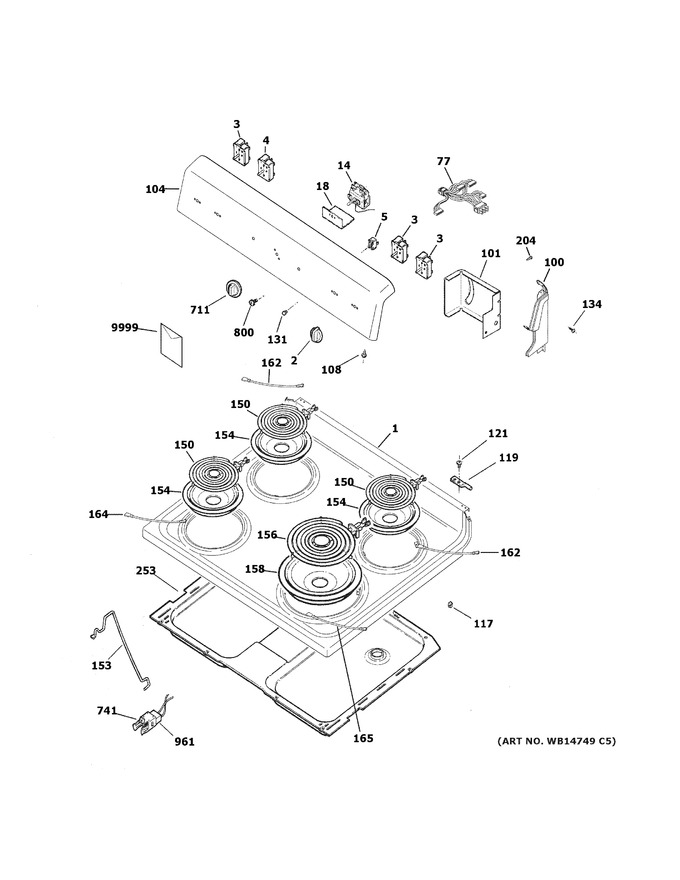

Control Panel & Cooktop
Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62K10083 | Cooktop White |
|
- | |||||
| 2 | WG02L01512 | Knob Infinite (wh) (Replaces: WB03T10282) |
|
Immediately | $ 40.01 | ||||
| 3 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 4 | WG02F04192 | Inf Sw Control (2500w) (Replaces: WB24T10025) |
|
Immediately | $ 65.23 | ||||
| 5 | WS01F01697 | Lamp Pilot (Replaces: WB25K10002) |
|
Immediately | $ 7.15 | ||||
| 14 | WS01F02680 | Thermostat Electric (Replaces: WB20K10026) |
|
Immediately | $ 177.72 | ||||
| 18 | WB02K10070 | Carton Cover Thermostat |
|
- | |||||
| 77 | WB18X32879 | Harness Main |
|
- | |||||
| 100 | WB07K10196 | End Support Lf (wh) |
|
- | |||||
| 100 | WS01A00545 | End Support Rt (wh) (Replaces: WB07K10195) |
|
$ 29.41 | |||||
| 101 | WB37X20193 | Bracket Cook Top Left |
|
- | |||||
| 101 | WB37X20286 | Bracket Cook Top |
|
- | |||||
| 104 | WB36X32371 | White Backguard |
|
- | |||||
| 108 | WB1X5874 | Screw Wh |
|
- | |||||
| 117 | WS01A00636 | Pin Locator Rear (Replaces: WB02K10075) |
|
$ 4.20 | |||||
| 117 | WB2K17 | Pin Locator Front |
|
- | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 131 | WB25K2 | Lens |
|
- | |||||
| 134 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.57 | |||||
| 150 | WB30X31058 | 6" Surface Burner With Sensor |
|
- | |||||
| 153 | WS01A00511 | Rod Support (Replaces: WB02K10026) |
|
$ 3.57 | |||||
| 154 | WS01L09257 | Bowl Burner 6 (ch) (Replaces: WB31K10265) |
|
Immediately | $ 14.86 | ||||
| 156 | WB30X31057 | 8" Surface Burner With Sensor |
|
- | |||||
| 158 | WS01L09258 | Bowl Burner 8 (ch) (Replaces: WB31K10266) |
|
Immediately | $ 19.54 | ||||
| 162 | WB18X27485 | Harness Surface Unit Rr |
|
- | |||||
| 164 | WB18X27487 | Harness Surface Unit Lf |
|
- | |||||
| 165 | WB18X27488 | Harness Surface Unit Rf |
|
- | |||||
| 204 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 253 | WB64K10009 | Box Cooktop |
|
- | |||||
| 711 | WB03X22562 | Knob Thermostat Asm. |
|
- | |||||
| 741 | WS01A00907 | Clip Receptical (Replaces: WB02K10133) |
|
Immediately | $ 4.48 | ||||
| 800 | WS01A01257 | Screw 8-32 Tpt Flr 215 Sn (Replaces: WB01T10020) |
|
$ 3.57 | |||||
| 961 | PM2M2261 | Block Insulator (Replaces: WB17K10003) |
|
Immediately | $ 28.29 | ||||
| 9999 | 31-17311 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 9999 | 31-10892 | Pm Install Instructions |
|
- | |||||
| 9999 | WB49X21392 | Hinge Service Kit |
|
- | |||||
| 9999 | 31-10781 | Pm Install Instructions |
|
- | |||||
| 9999 | 49-2000221 | Pm Quick Owners Manual |
|
- |
