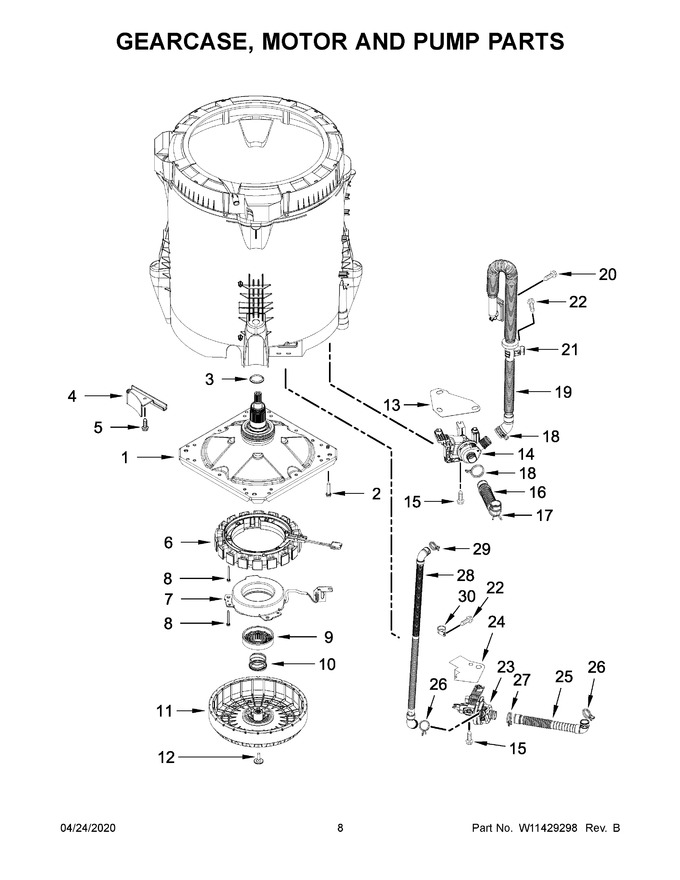

05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449841 | Drive Assembly (Replaces: W11185701) |
|
Immediately | $ 290.65 | ||||
| 2 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 3 | W11553312 | Washer, Thrust (Replaces: W11218170) |
|
Immediately | $ 15.79 | ||||
| 4 | W10673062 | Harness Shield - Motor |
|
$ 74.01 | |||||
| 5 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 6 | W11195971 | Stator, Motor (Replaces: W10897050) |
|
Immediately | $ 234.65 | ||||
| 7 | W10754448 | Assembly, Clutch (Replaces: W10905022) |
|
Immediately | $ 137.09 | ||||
| 8 | W11027980 | Screw (Replaces: W10644129) |
|
Immediately | $ 7.73 | ||||
| 9 | W10734521 | Slider (Replaces: W10905025) |
|
Immediately | $ 42.17 | ||||
| 10 | W10734521 | Assembly, Spring (Replaces: W10006494) |
|
Immediately | $ 42.17 | ||||
| 11 | W11260238 | Rotor, Motor (Replaces: W10897040) |
|
Immediately | $ 137.07 | ||||
| 12 | W10752189 | Screw (Replaces: W10636382) |
|
Immediately | $ 7.89 | ||||
| 13 | W10894129 | Shield, Heat |
|
- | |||||
| 14 | W11396717 | Pump Assembly, Drain (Replaces: W11263349) |
|
Immediately | $ 193.68 | ||||
| 15 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 16 | W10802689 | Hose, Tub To Pump (Replaces: W10763259) |
|
$ 32.99 | |||||
| 17 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 18 | WP285655 | Clamp, Hose (Replaces: W11375994) |
|
Immediately | $ 8.39 | ||||
| 19 | W11553446 | Hose, Internal Drain (Replaces: W11291620) |
|
Immediately | $ 48.08 | ||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 21 | W10652932 | Clip, Hose |
|
$ 40.94 | |||||
| 22 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 23 | W11426290 | Pump Assembly, Recirculation (Replaces: W10850021) |
|
$ 292.23 | |||||
| 24 | W10637933 | Shield, Recirculation Pump |
|
- | |||||
| 25 | W11848425 | Hose - Recirculation (pump To Lower Tub) (Replaces: W10763460) |
|
- | |||||
| 26 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.12 | |||||
| 27 | WP285655 | Clamp, Hose (Replaces: W10421047) |
|
Immediately | $ 8.39 | ||||
| 28 | W11197054 | Hose - Recirculation (pump To Upper Tub) |
|
- | |||||
| 29 | 3363365 | Clamp, Hose |
|
$ 10.75 | |||||
| 30 | 8534021 | Clamp, Recirc Hose Retainer |
|
$ 8.43 |
