01 - Cover Sheet
02 - Top And Cabinet Parts

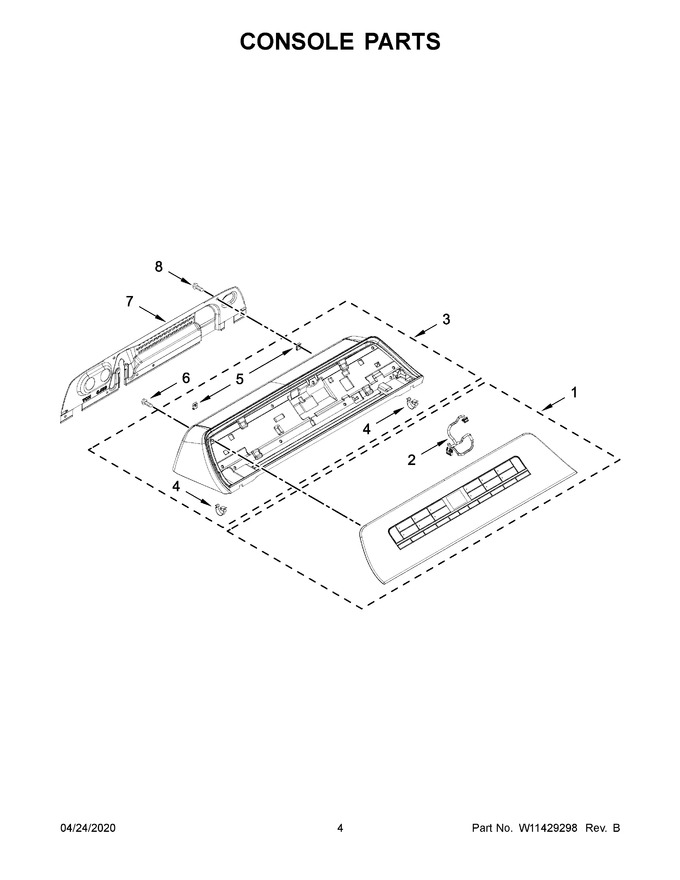

03 - Console Parts
04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11478525 | Assembly, Fascia (Replaces: W11094978) |
|
$ 600.33 | |||||
| 2 | W11662157 | Harness, Ui (Replaces: W11130939) |
|
$ 23.13 | |||||
| 3 | W11413339 | Assembly, Console (white) (Replaces: W11093764) |
|
Immediately | $ 377.35 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 5 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11129559 | Panel, Console Rear |
|
$ 292.62 | |||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 3A | W11413337 | Assembly, Console (chrome Shadow) (Replaces: W11178258) |
|
$ 378.83 |
