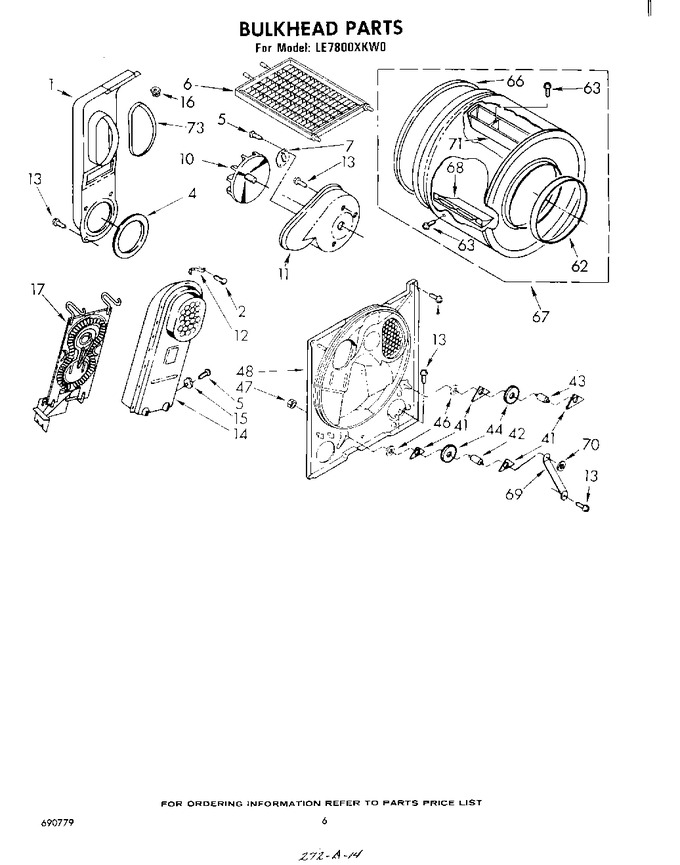

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 175.01 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | 687834 | Dry Rack Assembly |
|
- | |||||
| 7 | WP3390719 | Thermal Fuse (alternate) (Replaces: 690198) |
|
Immediately | $ 31.57 | ||||
| 7 | WP3390719 | Thermal Fuse (alternate) (Replaces: 688841) |
|
Immediately | $ 31.57 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 343939) |
|
Immediately | $ 37.66 | ||||
| 11 | 688880 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 685457 | Box, Heater |
|
- | |||||
| 15 | 341195 | Thermostat, 250~f (121.1~c) (alternate) |
|
- | |||||
| 16 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 17 | WP4391960 | Element, Heater (alternate (use 279139 Jumper Wire For Heater Element Harness Terminal Replacement)) (Replaces: 690983) |
|
Immediately | $ 60.56 | ||||
| 17 | WP4391960 | Element, Heater (alternate) (Replaces: 690241) |
|
Immediately | $ 60.56 | ||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | W11178667 | Bulkhead (Replaces: 685816) |
|
$ 225.91 | |||||
| 62 | WP3394509 | Ring, Bearing (Replaces: 337651) |
|
$ 125.38 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 279408 | Seal, Rear Drum (Replaces: 347885) |
|
$ 73.58 | |||||
| 67 | 347875 | Drum Assembly |
|
- | |||||
| 68 | 347892 | Baffle, Drum (2) |
|
- | |||||
| 69 | W11684613 | Bracket, Support (Replaces: 348944) |
|
$ 20.94 | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 71 | 348868 | Baffle, Drum |
|
- | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 |
