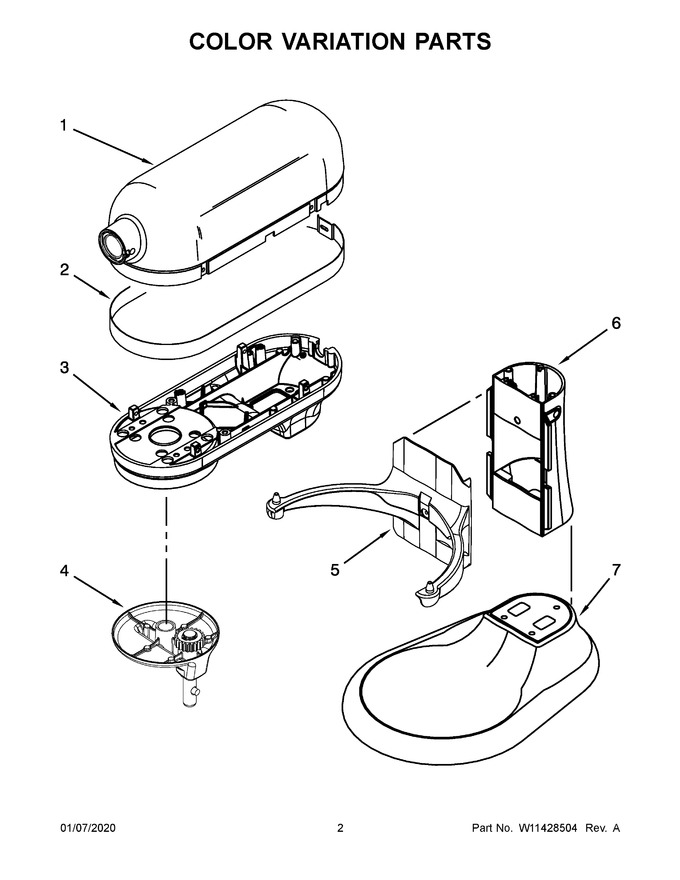

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9705296		Motor Housing (onyx Black)				$ 88.20
2	W10419455		Trim Band (dark Platinum)		Appelez-nous	-
3	W11638566		Lower Gearcase (silver)   (Replaces: W10234491)		Appelez-nous	-
4	WPW10410018		Planetary (onyx Black)   (Replaces: W10410018)				$ 65.60
5	9705356		Bowl Support And Pins (onyx Black)		Appelez-nous	-
6	WPW10450990		Column And Pins (onyx Black)   (Replaces: W10450990)				$ 98.88
7	9705344		Base And Foot Assembly (onyx Black)		Appelez-nous	-
1A	9709571		Motor Housing (silver)				$ 88.20
4A	W11407815		Planetary (silver)		Appelez-nous	-
5A	W10327840		Bowl Support And Pins (silver)				$ 74.91
6A	W11407807		Column And Pins (silver)		Appelez-nous	-
7A	9709588		Base And Foot Assembly (silver)				$ 80.32
