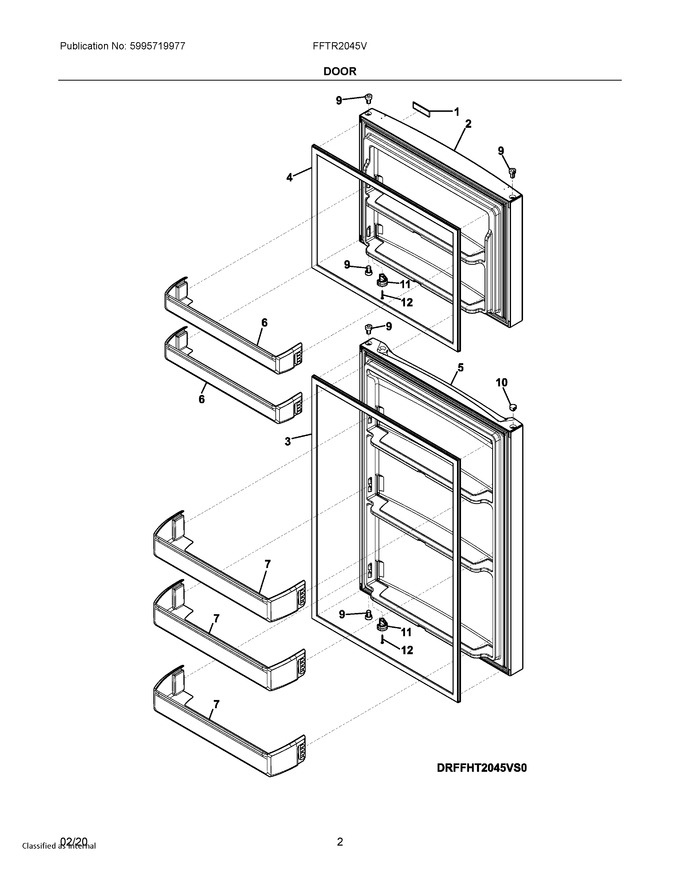

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304510903		Nameplate, Black Stainless				$ 56.46
2	5304524052		Door Assembly, Freezer, Black Stainless		Appelez-nous	-
3	5304523138		Gasket, Door, Gray, Refrigerator			Immediately	$ 219.15
4	5304523139		Gasket, Door, Gray, Freezer			Immediately	$ 198.94
5	5304524053		Door Assembly, Refrigerator, Stainless		Appelez-nous	-
6	5304524054		Bin, Door, White, Freezer				$ 56.23
7	5304524055		Bin, Door, 6", Refrigerator			Immediately	$ 90.07
9	5304522193		Bearing, Hinge, Black				$ 8.43
10	5304522187		Cover, Hinge Bearing, Gray			Immediately	$ 8.27
11	5304522237		Hook, Door Closer, Black				$ 5.06
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 12.64
