SELECT A DIAGRAM
New Model Search:

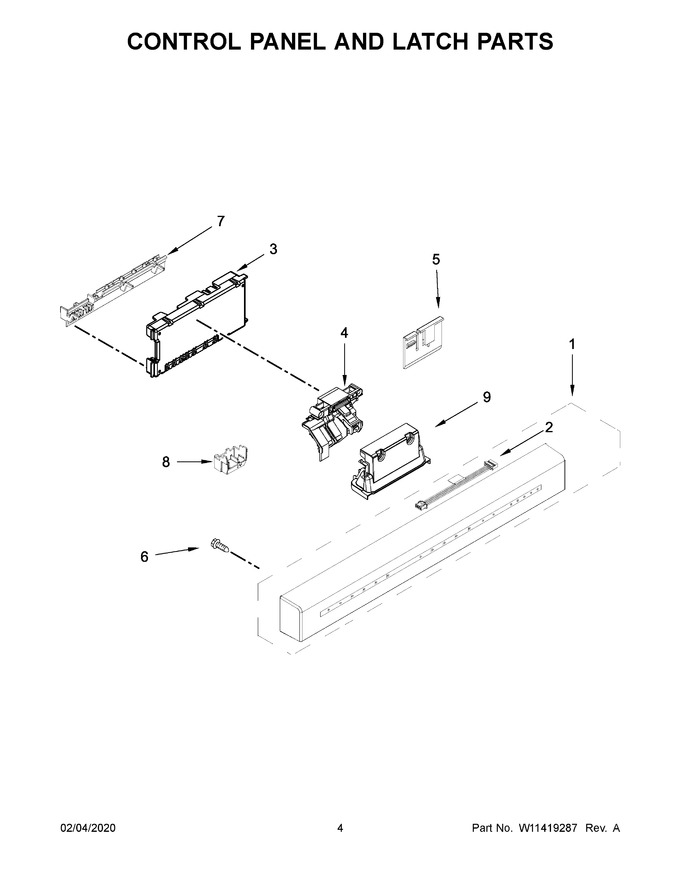

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11395600 | Console Assembly (stainless) (Replaces: W11366250) |
|
Immediately | $ 373.92 | ||||
| 2 | W10792164 | Jumper, 4 Wire |
|
$ 23.71 | |||||
| 3 | W11225084 | Control, Electronic (Replaces: W11168783) |
|
Immediately | $ 290.00 | ||||
| 4 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 5 | W11256107 | Clip, Control (Replaces: W11233967) |
|
$ 23.27 | |||||
| 6 | WPW10348408 | Screw (long) (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 7 | W11305293 | Brace, Connector (Replaces: W10825369) |
|
Immediately | $ 236.98 | ||||
| 8 | W11305293 | Box, Connector (Replaces: W10825638) |
|
Immediately | $ 236.98 | ||||
| 9 | W11255754 | Handle (black) (Replaces: W11133235) |
|
$ 124.16 |
