01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts

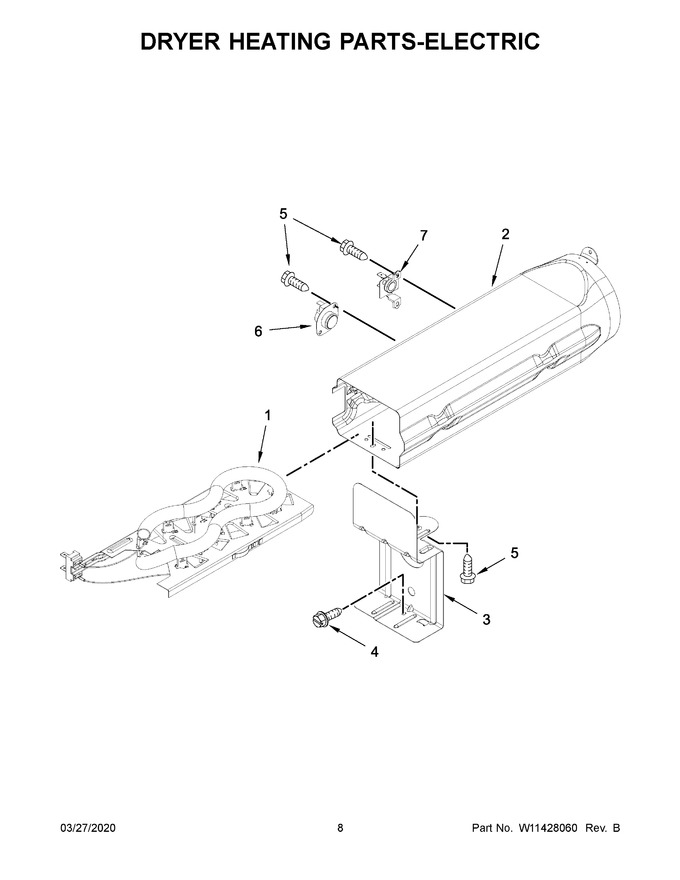

05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3387747 | Element, Heater 5400w (Replaces: W11344457) |
|
Immediately | $ 84.64 | ||||
| 2 | W10802681 | Assembly, Weld Heater Box (Replaces: W10608837) |
|
Immediately | $ 129.67 | ||||
| 3 | 8066099 | Bracket, Heater Box |
|
$ 24.35 | |||||
| 4 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3391914 | Thermostat Hl-295/215 (Replaces: 3391914) |
|
Immediately | $ 119.47 | ||||
| 7 | 279973 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 75.60 |
