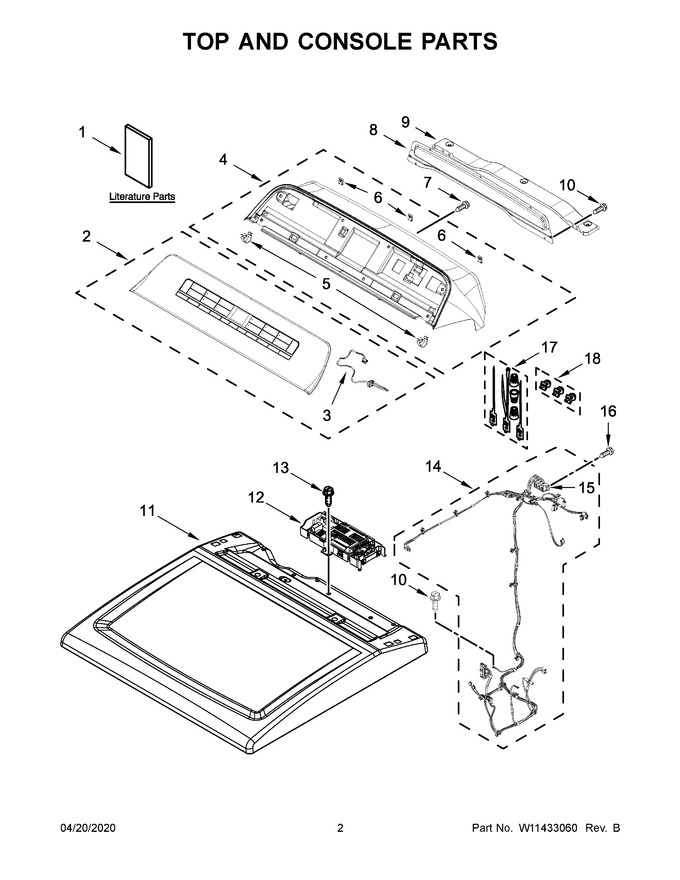

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11268643 | Installation Instructions |
|
- | |||||
| 2 | W11419060 | Assembly, Console Fascia (complete) (Replaces: W11164035) |
|
- | |||||
| 3 | W11164312 | Harness, User Interface (hmi) |
|
$ 167.98 | |||||
| 4 | W11401367 | Console (white) (Replaces: W11178534) |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 7 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 8 | W10622402 | Panel, Rear Console |
|
- | |||||
| 9 | W10651902 | Bulkhead Bracket, Rear Panel |
|
- | |||||
| 10 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 11 | W11227373 | Top (white) (Replaces: W10508981) |
|
$ 255.61 | |||||
| 12 | W11526005 | Control, Electronic (acu) (Replaces: W11424517) |
|
- | |||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 14 | W11164226 | Harness, Main |
|
- | |||||
| 15 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 16 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 18 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 11A | W11051477 | Top (chrome Shadow) (Replaces: W10681117) |
|
$ 358.85 | |||||
| 1A | W11175222 | Tech Sheet |
|
- | |||||
| 1B | W11175247 | Quick Start Guide |
|
- | |||||
| 4A | W11401368 | Console (chrome Shadow) (Replaces: W11178535) |
|
- |
