01 - Cover Sheet
02 - Backguard
03 - Body

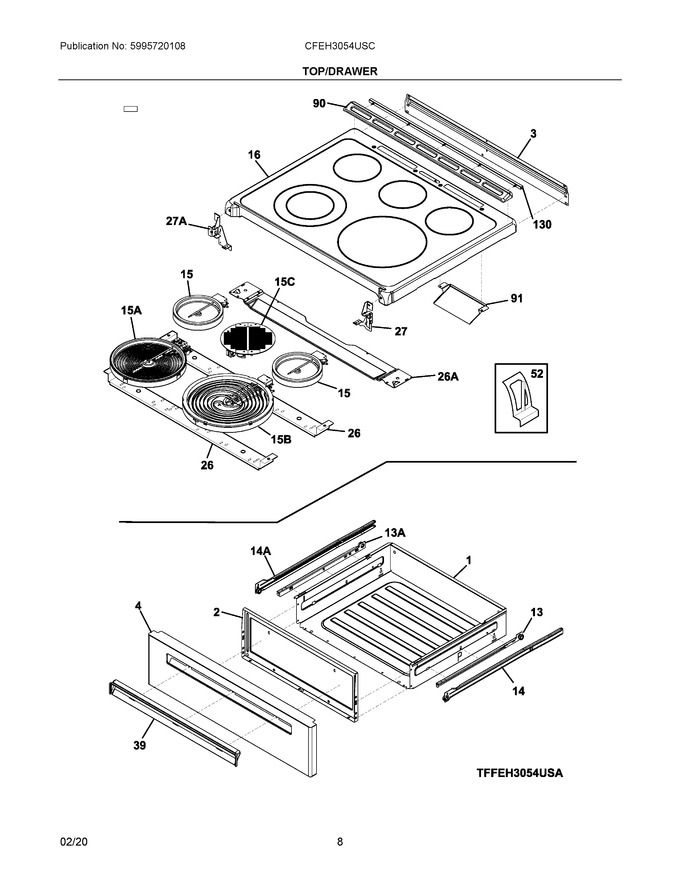

04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility |
|
Immediately | $ 122.90 | ||||
| 2 | 5304527988 | Liner, Drawer (Replaces: 5304511880) |
|
Immediately | $ 29.49 | ||||
| 3 | 5304514133 | Shield, Rear Wall, Upper |
|
$ 38.77 | |||||
| 4 | 5304510527 | Panel, Drawer, Stainless |
|
$ 122.29 | |||||
| 13 | 5304517905 | Glide, Drawer, Black, Rh Inner |
|
$ 18.54 | |||||
| 14 | 5304517904 | Glide, Drawer, Black, Rh Outer |
|
Immediately | $ 28.65 | ||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 136.51 | ||||
| 16 | 5304514197 | Smoothtop, Assembly, Glass/steel, Black |
|
Immediately | $ 635.34 | ||||
| 26 | 5304512926 | Channel, Element Support |
|
$ 51.35 | |||||
| 27 | 5304514123 | Bracket, Mounting, Rh, Cooktop |
|
$ 15.17 | |||||
| 39 | 5304511879 | Handle Insert, Drawer |
|
$ 74.43 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 13.39 | |||||
| 90 | 5304514157 | Trim, Vent, Black, Rear |
|
$ 68.25 | |||||
| 91 | 5304514181 | Deflector, Moisture, (2) |
|
$ 11.81 | |||||
| 92 | 5304520261 | Rear Filler Kit, Fcfs Range, Black |
|
Immediately | $ 182.01 | ||||
| 130 | 808931802 | Seal, Maintop, Silicone, Rear |
|
$ 44.66 | |||||
| 13A | 5304517903 | Glide, Drawer, Black, Lh Inner |
|
$ 32.19 | |||||
| 14A | 5304517902 | Glide, Drawer, Black, Lh Outer |
|
Immediately | $ 53.31 | ||||
| 15A | 5304533520 | Element, Dual, 9"/6", Surface, 3000w, Quick Boil (Replaces: 316282000) |
|
Immediately | $ 100.15 | ||||
| 15B | 316291200 | Element, Surface, 12", 2700w |
|
Immediately | $ 261.45 | ||||
| 15C | 5304521951 | Element, Warmer, 100 W |
|
Immediately | $ 71.62 | ||||
| 26A | 5304514126 | Bracket, Support, Rear, Chassis |
|
- | |||||
| 27A | 5304514124 | Bracket, Mounting, Lh, Cooktop |
|
$ 15.17 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 14.96 | |||||
| NI | 316021132 | Screw, 8-18 X 11/16, Black, (3) |
|
$ 14.32 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 5304514143 | Harness, Wiring, Surface |
|
$ 218.30 | |||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.53 |
