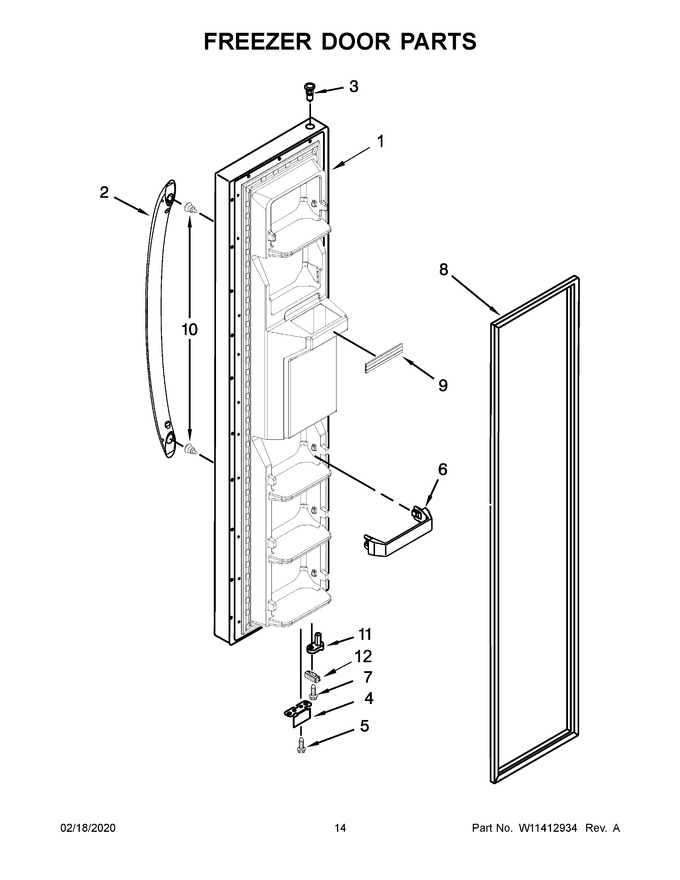

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW11108865		Door, Freezer (includes Door Gasket) (white)   (Replaces: W11108865)		Appelez-nous	-
2	W10210942A		Handle (white)   (Replaces: W10210942)				$ 129.53
3	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
4	W11557261		Bracket, Door Stop (black)   (Replaces: W10900531)			Immediately	$ 18.67
5	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
8	2159075		Gasket, Door (beige)   (Replaces: W10911412)			Immediately	$ 333.00
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
10	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
11	W11661926		Thimble, Cam   (Replaces: W10900532)				$ 14.02
12	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.93
12A	W10407187		Bumper, Door (black)				$ 48.34
1A	LW11108866		Door, Freezer (includes Door Gasket) (black)   (Replaces: W11108866)		Appelez-nous	-
1B	LW10898312		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W10898312)		Appelez-nous	-
2A	W10210942A		Handle (black)   (Replaces: W10210943)				$ 129.53
2B	WPW10257120		Handle (grey)   (Replaces: W10257120)				$ 59.70
8A	2159083		Gasket, Door (black)   (Replaces: W10911422)				$ 251.49
