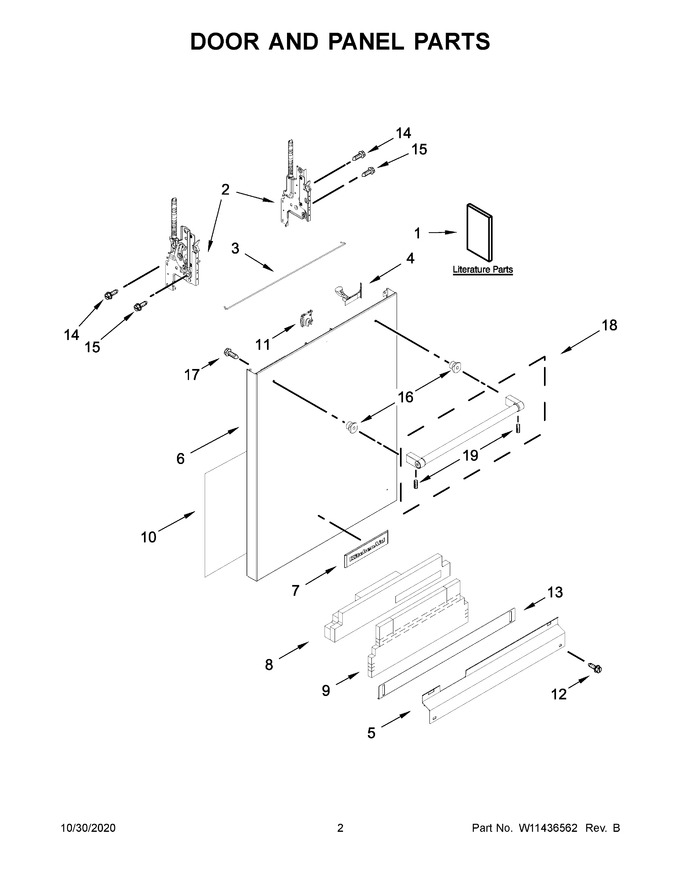

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11323304 | Owners Manual |
|
- | |||||
| 2 | W11766666 | Arm, Hinge (left Hand) (Replaces: W10920232) |
|
Immediately | $ 59.16 | ||||
| 3 | W11377160 | Cross Brace, Door |
|
$ 33.36 | |||||
| 4 | W11102920 | Light Pipe |
|
$ 68.17 | |||||
| 5 | W11545318 | Access Panel (black) (Replaces: W11108979) |
|
Immediately | $ 27.90 | ||||
| 6 | W11702836 | Front Panel (includes 4, 7 & 11) (stainless) (Replaces: W11246751) |
|
Immediately | $ 560.54 | ||||
| 7 | W10909682 | Nameplate (Replaces: W10518673) |
|
Immediately | $ 76.20 | ||||
| 8 | W11573700 | Insulation, Multi-layer (Replaces: W10919858) |
|
Immediately | $ 44.89 | ||||
| 9 | W11573704 | Insulation, Single Layer (Replaces: W11038694) |
|
Immediately | $ 29.98 | ||||
| 10 | W11778318 | Insulation, Front Panel (Replaces: W10919859) |
|
$ 23.86 | |||||
| 11 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 12 | W11551775 | Screw, Black (Replaces: W11170267) |
|
Immediately | $ 15.43 | ||||
| 13 | W11579528 | Toe Panel (black) (Replaces: W11108991) |
|
Immediately | $ 32.90 | ||||
| 14 | WPW10309090 | Screw (Replaces: W11364953) |
|
Immediately | $ 76.86 | ||||
| 15 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 | |||||
| 16 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 8.87 | ||||
| 17 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 18 | W10708004 | Handle Assembly (stainless) (Replaces: W11325031) |
|
Immediately | $ 141.35 | ||||
| 19 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 7.55 | ||||
| 1A | W11404477 | Energy Guide |
|
- | |||||
| 1B | W11366142 | Tech Sheet |
|
- | |||||
| 2A | W11766665 | Arm, Hinge (right Hand) (Replaces: W10920230) |
|
Immediately | $ 59.16 |
