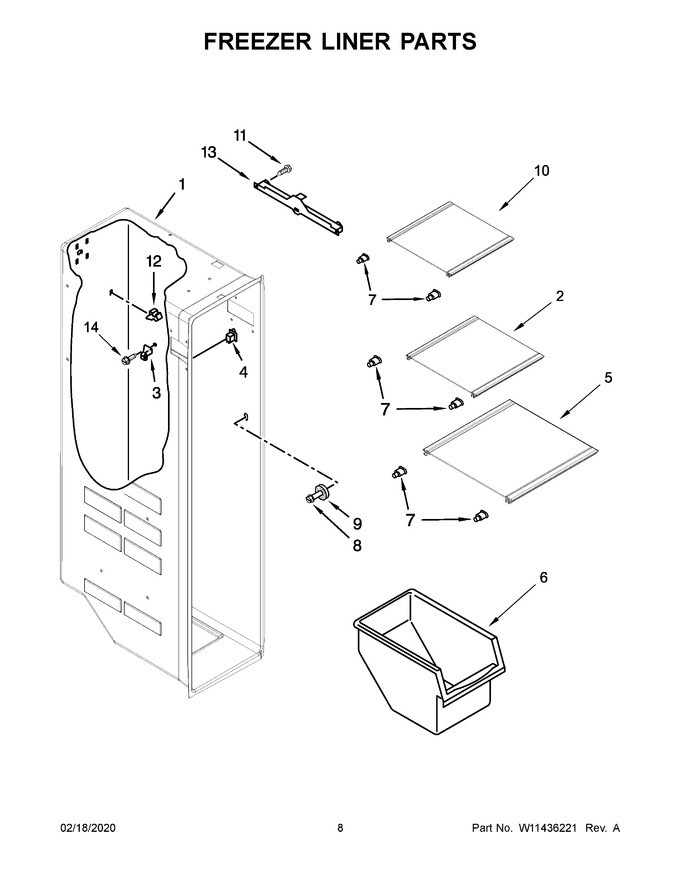

05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W11194631		Shelf, Glass (middle)   (Replaces: W11048572)				$ 216.51
3	2196206		Stud, Support		Appelez-nous	-
4	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 37.30
5	W11311689		Shelf, Glass (bottom)   (Replaces: W11252832)				$ 234.16
6	WP2309758		Bin, Freezer   (Replaces: 2309758)			Immediately	$ 124.47
7	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.00
8	WP3-24004-109		Screw   (Replaces: W10191954)				$ 8.05
9	W11223328		Assembly, Stud   (Replaces: 2196208)			Immediately	$ 14.07
10	W11194634		Shelf, Glass (top)   (Replaces: W11048569)				$ 224.09
11	718257		Screw   (Replaces: 489100)		Appelez-nous	-
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.42
13	W10845585		Slide, Ice Container (left)				$ 132.77
14	W10142289		Screw   (Replaces: 3400893)				$ 9.15
13A	W10845583		Slide, Ice Container (right)				$ 123.92
