View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Control Parts
Door Parts
Installation Parts
Interior Parts (1)
Interior Parts (2)
Latch Board Parts
Oven Cavity Parts
SELECT A DIAGRAM
New Model Search:

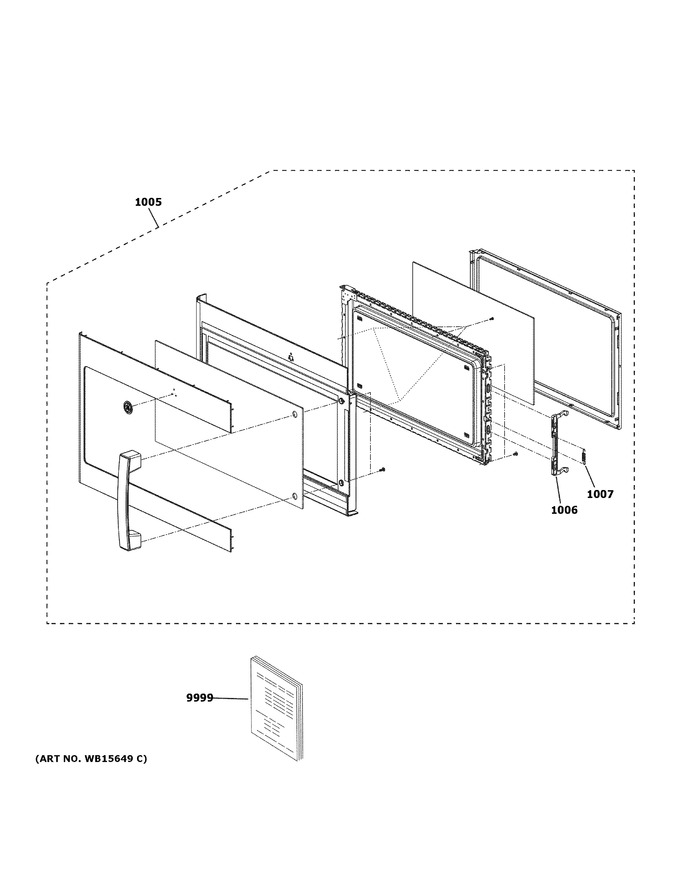

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1005 | WB56X35675 | Black Stainless Door Asm |
|
- | |||||
| 1006 | WB10X35494 | Door Key |
|
- | |||||
| 1007 | WB09X10017 | Spring Latch Door |
|
- | |||||
| 9999 | 31-7000091 | Pm Install Instructions |
|
- | |||||
| 9999 | 31-7000106 | Pm Mini Manual And Wiring |
|
- | |||||
| 9999 | 31-30787 | Pm Mini Manual |
|
- | |||||
| 9999 | 31-7000096 | Pm Template |
|
- | |||||
| 9999 | 49-7000095 | Pm Owners Manual |
|
- | |||||
| 9999 | 31-7000098 | Pm Template |
|
- | |||||
| 9999 | 49-40336 | Template Rear |
|
- | |||||
| 9999 | 31-41078 | Template Top |
|
- | |||||
| 9999 | 49-40765 | Pm Installation Instruction |
|
- | |||||
| 9999 | 49-40763 | Pm Users Manual |
|
- | |||||
| 9999 | 49-40734 | Pm Quick Ref Otr N-conv |
|
- |
