Control Parts
Door Parts
Installation Parts
Interior Parts (1)
Interior Parts (2)
Latch Board Parts
Oven Cavity Parts
SELECT A DIAGRAM
New Model Search:

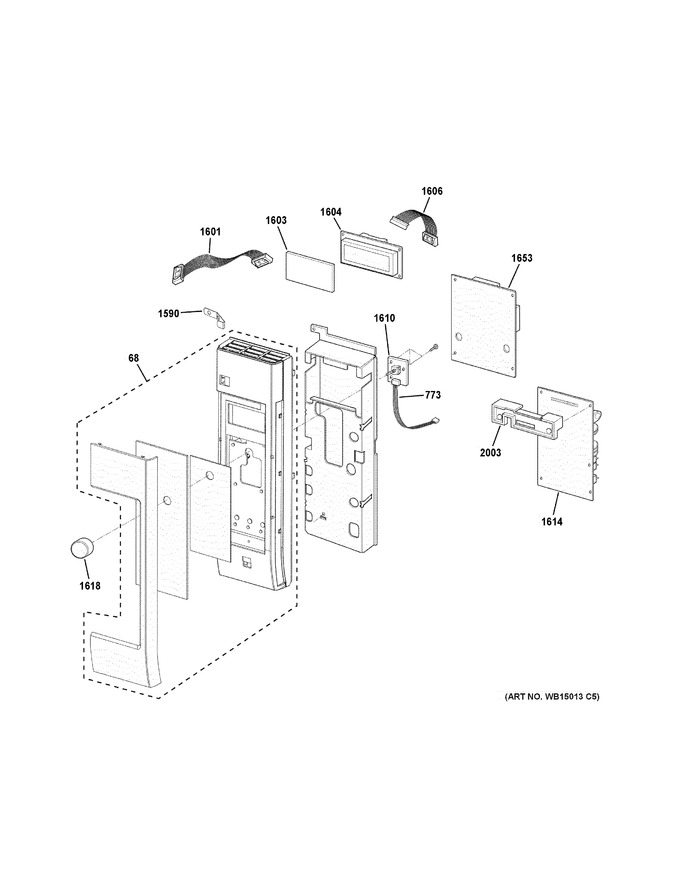

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 68 | WB07X11311 | Controller Asm,sub |
|
- | |||||
| 773 | WB18X10411 | Harness,pcb To Dial Pcb |
|
- | |||||
| 1590 | WB06X10837 | Bracket,idle |
|
- | |||||
| 1601 | WB18X10457 | Harness,single |
|
- | |||||
| 1603 | WB27X25563 | Cover Display |
|
- | |||||
| 1604 | WB06X10835 | Vf Display |
|
- | |||||
| 1606 | WB18X10459 | Harness,single |
|
- | |||||
| 1610 | WG02L09547 | Encoder Board (Replaces: WB27X11022) |
|
$ 88.13 | |||||
| 1614 | WB27X11114 | Relay Board |
|
- | |||||
| 1618 | WB03X10328 | Knob Asm |
|
- | |||||
| 1653 | WB27X27263 | Main Board |
|
- | |||||
| 2003 | WB06X10840 | Holder. Pcb |
|
- |
