SELECT A DIAGRAM
New Model Search:

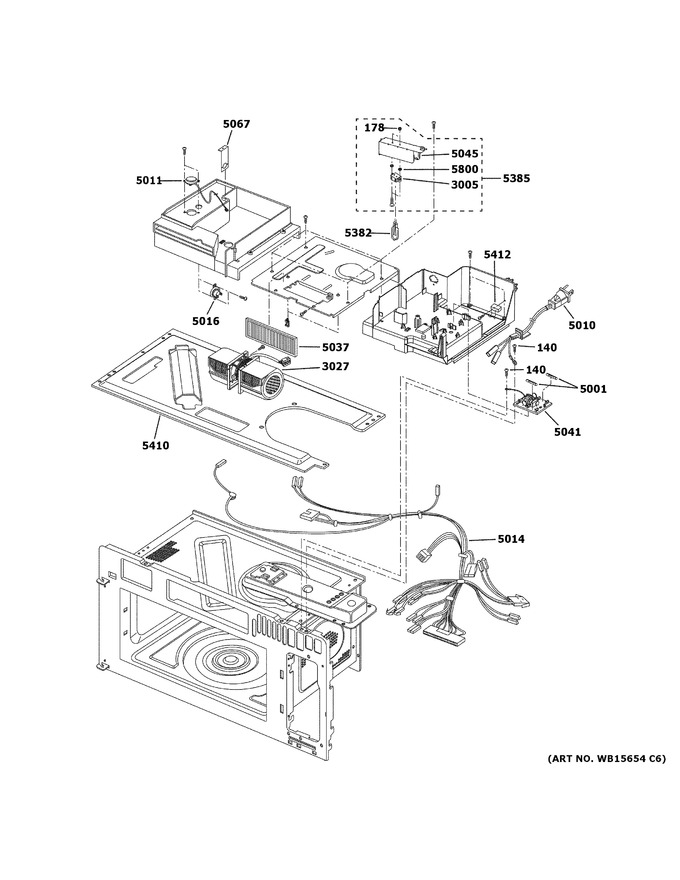

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 140 | WB01X35374 | Screw |
|
- | |||||
| 178 | WB01X10411 | Nut Hexagon |
|
$ 3.88 | |||||
| 3005 | WB01X45990 | Flat Black Stainless Knob |
|
- | |||||
| 3005 | WG02L02137 | Holder Assembly (Replaces: WB06X10554) |
|
$ 29.41 | |||||
| 3027 | WB26X10269 | Motor, Ventilation |
|
- | |||||
| 5001 | WG02F06332 | Fuse (Replaces: WB27X10928) |
|
Immediately | $ 15.88 | ||||
| 5010 | WB18X32717 | Power Cord Asm |
|
- | |||||
| 5011 | WG02F01437 | Sensor Asm (Replaces: WB27X10857) |
|
$ 125.60 | |||||
| 5014 | WB18X35379 | Harness |
|
- | |||||
| 5016 | WB20X10052 | Thermostat |
|
$ 11.91 | |||||
| 5037 | WB02X35607 | Charcoal Filter |
|
- | |||||
| 5041 | WB02X25915 | Noise Filter Board |
|
- | |||||
| 5045 | WB34X35400 | Lamp Cover |
|
- | |||||
| 5067 | WB34X35401 | Thermostat Bracket |
|
- | |||||
| 5382 | WB25X35368 | Lamp,halogen |
|
- | |||||
| 5385 | WB25X35394 | Lamp And Holder Asm |
|
- | |||||
| 5410 | WB35X35372 | Insulation Asm |
|
- | |||||
| 5412 | WB27X10808 | Capacitor |
|
- | |||||
| 5800 | WB01X10414 | Supporter,housing |
|
- |
