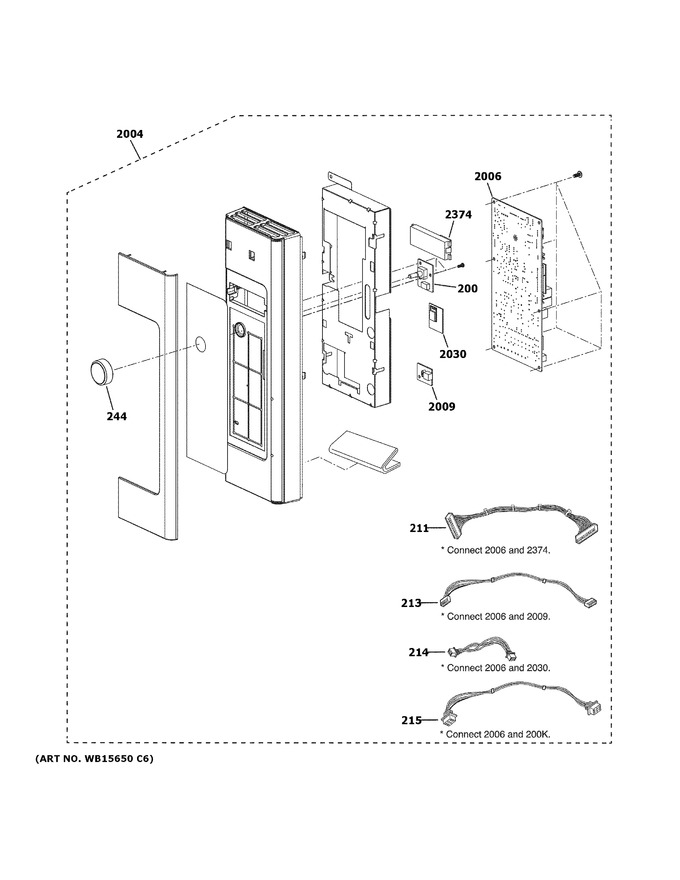

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | WB27X32632 | Encoder Board |
|
- | |||||
| 211 | WB18X35393 | Harness From Main Pcb To Led Display |
|
- | |||||
| 213 | WB18X35389 | Harness From Main Board To Pcb Asm |
|
- | |||||
| 214 | WB18X35387 | Harness From Main Pcb To Sub Pbc |
|
- | |||||
| 215 | WB18X35391 | Harness From Main Pcb To Encoder Board |
|
- | |||||
| 244 | WB03X35392 | Stainless Steel Knob |
|
- | |||||
| 2004 | WB56X35596 | Slate Control Panel Asm |
|
- | |||||
| 2006 | WB27X35398 | Main Board |
|
- | |||||
| 2009 | WB27X35569 | Pcb Asm |
|
- | |||||
| 2030 | WB27X35405 | Pcb Sub Asm |
|
- | |||||
| 2374 | WB18X35406 | Leddisplay |
|
- |
