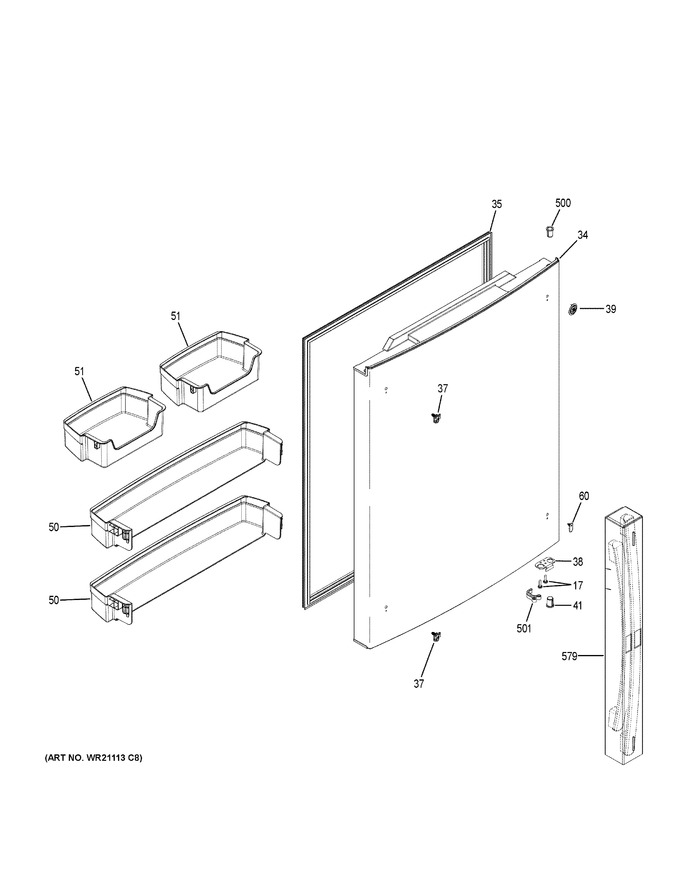

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WR01X10582		Scr 10-16		Appelez-nous	-
34	WR78X25711		Door Foam Ff Asm Bb		Appelez-nous	-
35	WR14X25408		Gasket Door Ff Dg		Appelez-nous	-
37	WR01A02427		Fastener Handle Asm   (Replaces: WR01X25070)			Immediately	$ 7.15
38	WR02X24874		Stop Door		Appelez-nous	-
39	WR04X28513		Ge Badge Black Stainless		Appelez-nous	-
41	WR02X24875		Hinge Bushing Bb		Appelez-nous	-
50	WR71X25410		Shelf Door Full		Appelez-nous	-
51	WR71X24867		Shelf Door Module		Appelez-nous	-
60	WR02X25704		Plug Button Black		Appelez-nous	-
500	WR02X24876		Hinge Bushing Bb		Appelez-nous	-
501	WR02X24877		Force Closure		Appelez-nous	-
579	WR12X25712		Pk Handle Kit Asm Bb		Appelez-nous	-
579	WR12X34230		Black Door Handle		Appelez-nous	-
