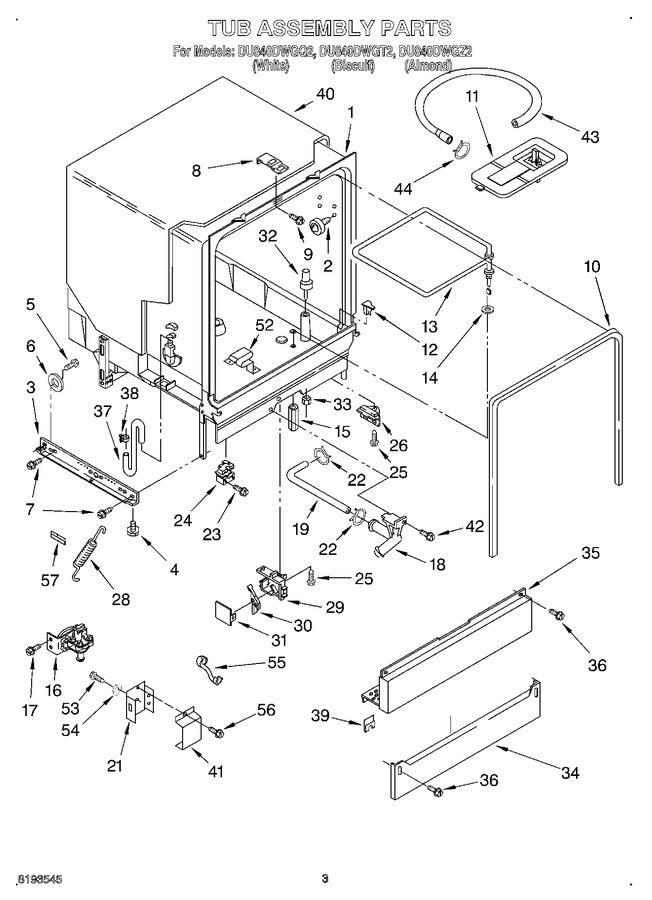

03 - Tub Assembly


04 - Pump And Sprayarm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3378159		Tub And Support Assembly		Appelez-nous	-
2	3380371		Tub, Wheel Assembly (8)				$ 17.44
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369322)				$ 99.06
12	WP8528862		Deflector   (Replaces: 8268872)				$ 63.90
13	WPW10082894		Heater   (Replaces: 8519827)				$ 141.52
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	WPW10477552		Nut (2) (heater Terminal)   (Replaces: 8268548)			Immediately	$ 8.23
16	W10844024		Water Valve   (Replaces: 8283345)			Immediately	$ 96.30
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369180		Hose, Coupler		Appelez-nous	-
21	3378131		Terminal Box		Appelez-nous	-
22	371499		Clamp (double)				$ 12.95
23	WP489128		Screw   (Replaces: 3370225)				$ 11.40
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 8.14
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 81.57
28	WP3379383		Spring, Door (2)   (Replaces: 3379383)			Immediately	$ 25.30
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 8519552)				$ 124.92
33	717488		Nut				$ 12.83
34	9742862		Panel, Toe (almond)		Appelez-nous	-
34	9742861		Panel, Toe (white)		Appelez-nous	-
34	8054181		Panel, Toe (biscuit)		Appelez-nous	-
35	3379918		Panel, Access (white)				$ 21.91
35	3379919		Panel, Access (almond)		Appelez-nous	-
35	8054179		Panel, Access (biscuit)		Appelez-nous	-
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
39	3378123		Clip, Grounding				$ 7.79
40	W11086533		Shield, Sound   (Replaces: 3375549)			Immediately	$ 31.30
41	300068		Cover Assembly Terminal Box				$ 30.14
42	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
43	WP3374077		Hose, Drain   (Replaces: 3368781)			Immediately	$ 102.23
44	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
52	3379740		Support, Heater (3)				$ 51.56
53	WP3400014		Screw   (Replaces: 3400014)				$ 8.24
54	WP3378128		Washer   (Replaces: 3378128)				$ 11.81
55	3370307		Relief, Strain		Appelez-nous	-
56	3369138		Screw, 8-18				$ 5.81
57	8052018		Friction Pad		Appelez-nous	-
