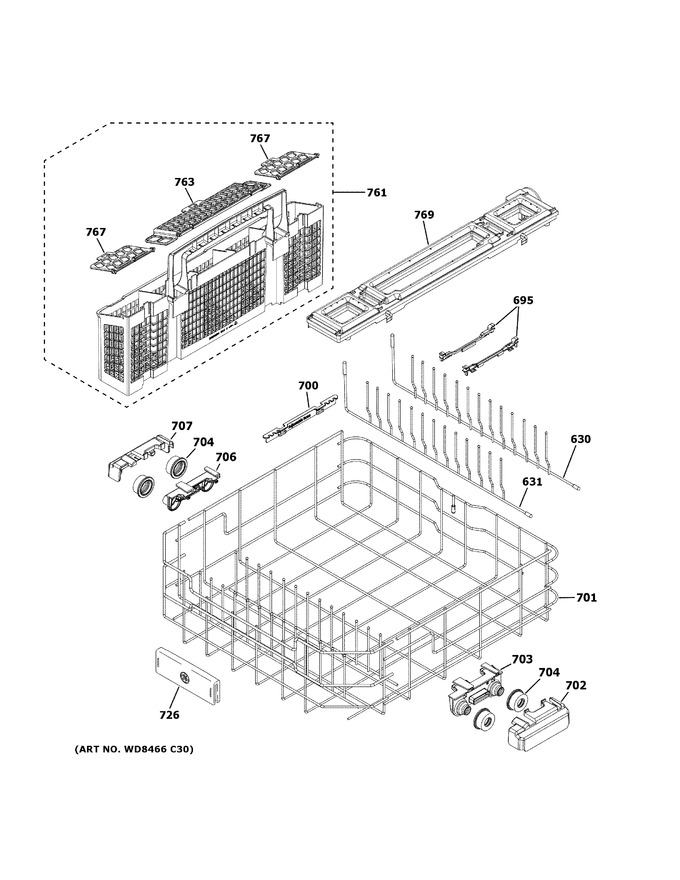

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 630 | WD28X25581 | Coated Fold Down Tine |
|
- | |||||
| 631 | WD28X25582 | Coated Fold Down Tine |
|
- | |||||
| 695 | WD12X20171 | Clip Lower Rack |
|
- | |||||
| 700 | WD28X20166 | Indexer |
|
- | |||||
| 701 | WD28X25580 | Coated Lower Rack Asm |
|
- | |||||
| 702 | WG04A04452 | Cover Roller Lh (Replaces: WD12X10439) |
|
Immediately | $ 14.29 | ||||
| 703 | WD12X10447 | Carrier Roller Lh |
|
- | |||||
| 704 | WG04A04447 | Roller Lower Rack (Replaces: WD12X10435) |
|
Immediately | $ 4.07 | ||||
| 706 | WG04A04452 | Carrier Roller Rh (Replaces: WD12X10446) |
|
Immediately | $ 14.29 | ||||
| 707 | WG04L02091 | Cover Roller Rh (Replaces: WD12X10438) |
|
Immediately | $ 52.67 | ||||
| 726 | WD09X25644 | Rack Handle |
|
- | |||||
| 761 | WD28X24469 | Basket Asm Silverware |
|
- | |||||
| 763 | WD28X24476 | Lid Basket Middle |
|
- | |||||
| 767 | WD28X24477 | Lid Basket Side |
|
- | |||||
| 769 | WD22X22863 | Blaster Silverware Asm |
|
- |
