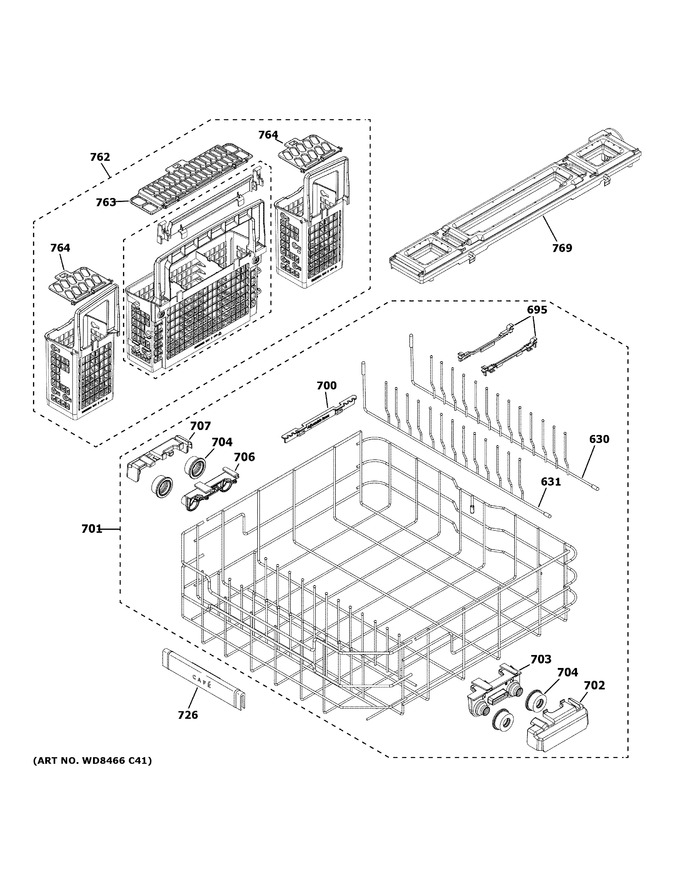

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 630 | WD28X20164 | Fdt Coated Lower Rack |
|
- | |||||
| 631 | WD28X20165 | Fdt Coated Lower Rack |
|
- | |||||
| 695 | WD12X20171 | Clip Lower Rack |
|
- | |||||
| 700 | WD28X20166 | Indexer |
|
- | |||||
| 701 | WD28X25668 | Complete Lower Rack Asm |
|
- | |||||
| 702 | WD12X20160 | Roller Cover Lh |
|
- | |||||
| 703 | WD12X20159 | Roller Carrier Lh |
|
- | |||||
| 704 | WG04A04447 | Roller Lower Rack (Replaces: WD12X10435) |
|
Immediately | $ 4.07 | ||||
| 706 | WD12X20158 | Roller Carrier Rh |
|
- | |||||
| 707 | WD12X20161 | Roller Cover Rh |
|
- | |||||
| 726 | WD09X25338 | Caf Rack Handle |
|
- | |||||
| 762 | WD28X25327 | Silverware Basket Asm With Rail |
|
- | |||||
| 763 | WD28X20153 | Lid Basket Middle |
|
- | |||||
| 764 | WD28X20156 | Lid Basket Side |
|
- | |||||
| 769 | WD22X22928 | Blaster Silverware Asm |
|
- |
