01 - Cover Sheet
02 - Control Panel

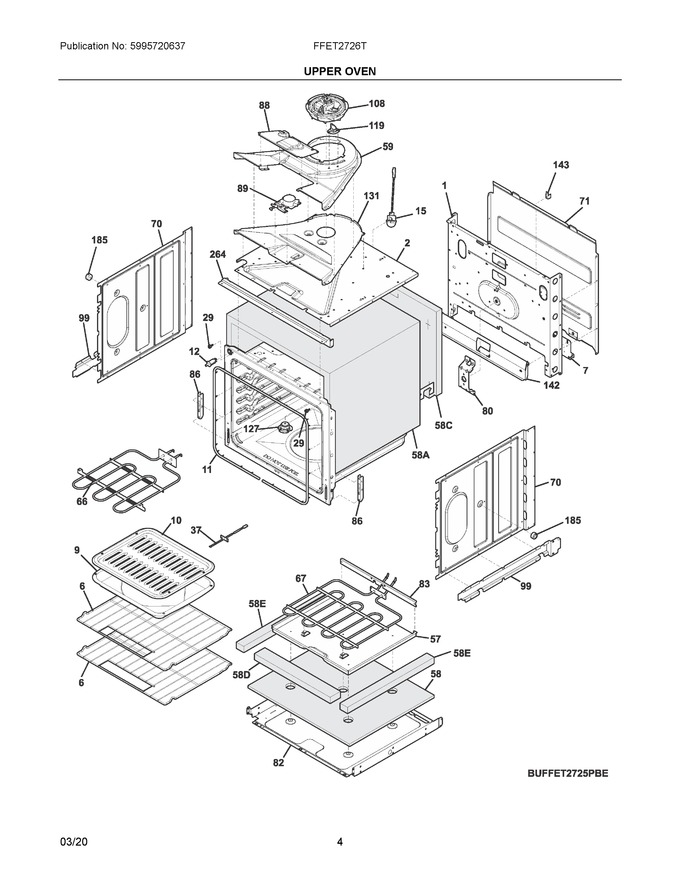

03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506958 | Panel, Main Back |
|
- | |||||
| 2 | 139027804 | Shield, Insulation, Top |
|
- | |||||
| 6 | 139011901 | Rack, Oven, W/handle (Replaces: 139011900) |
|
Immediately | $ 40.27 | ||||
| 7 | 5304506960 | Panel, Service, Main Back |
|
- | |||||
| 9 | 318138801 | Pan, Broiler |
|
- | |||||
| 10 | 318126401 | Insert, Broiler Pan |
|
- | |||||
| 11 | 807545501 | Seal, Oven Door, Gray |
|
Immediately | $ 90.43 | ||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 48.93 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 22.84 | ||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 13.39 | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 53.48 | ||||
| 57 | 5304538692 | Box, Bake Element (Replaces: 5304506949) |
|
- | |||||
| 58 | 5304506952 | Insulation, Bake Element, Lower |
|
$ 85.84 | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 95.29 | |||||
| 66 | 5304523477 | Element, Broil, 6 Pass, 3400w |
|
$ 262.06 | |||||
| 67 | 140010667149 | Element, Hidden Bake, 2500w (Replaces: 5304506946) |
|
$ 61.37 | |||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 80.05 | |||||
| 71 | 139022000 | Shield, Rear Wire, Main Back |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 16.54 | |||||
| 82 | 5304506947 | Shield, Insulation, Lower |
|
- | |||||
| 83 | 5304506951 | Shield, Bake Element, Rear |
|
- | |||||
| 86 | 318561100 | Receptacle, Hinge, (2) |
|
$ 23.59 | |||||
| 88 | 5304506964 | Cover, Latch Motor |
|
$ 26.78 | |||||
| 89 | 5304528835 | Motor, Latch Assy., 2 Terminals (Replaces: 139021303) |
|
Immediately | $ 82.36 | ||||
| 99 | 139005201 | Bracket, Support, Side, (2) |
|
- | |||||
| 108 | 318575615 | Motor Assembly, Cooling Fan |
|
- | |||||
| 119 | 318578506 | Thermostat, Safety, 105c |
|
Immediately | $ 64.66 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 11.14 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 81.11 | |||||
| 142 | 5304506953 | Sheild, Air Deflector, Back |
|
- | |||||
| 143 | 318172904 | Bracket, Wire Support |
|
- | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 14.18 | |||||
| 264 | 139003501 | Trim, Vent, Black, Front |
|
$ 40.22 | |||||
| 58A | 139001701 | Insulation, Oven Wrapper, 27", Top & Sides |
|
- | |||||
| 58C | 5304506954 | Insulation, Oven, Back |
|
- | |||||
| 58D | 5304506965 | Insulation, Bake Element, Front |
|
- | |||||
| 58E | 5304506966 | Insulation, Bake Element, Side |
|
- | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 6.30 | |||||
| NI | 5304517329 | Harness, Wiring, Speed Sensor |
|
$ 47.19 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 10.24 | |||||
| NIA | 318579001 | Bracket, Wire |
|
$ 11.08 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 67.15 | ||||
| NIA | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NIB | 5304518444 | Harness, Wiring, Mdl Upper Oven |
|
- |
