01 - Cover Sheet

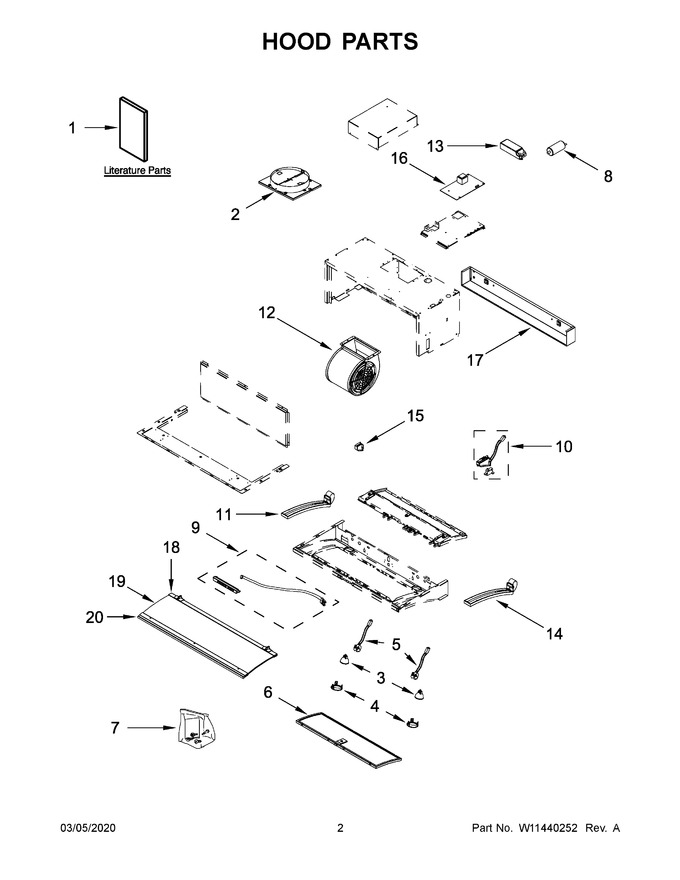

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10342488		Use And Care Guide		Appelez-nous	-
2	W10706422		Assembly, Damper				$ 331.17
3	W11439647		Lamp, Led   (Replaces: W11439222)				$ 263.73
4	W10369165		Light Bezel				$ 21.25
5	W11439227		Socket, Light (with Wiring)		Appelez-nous	-
6	WPW10369163		Grease Filter   (Replaces: W10369163)				$ 233.43
7	W11185791		Hardware, Installation				$ 171.18
8	W10256657		Capacitor			Immediately	$ 94.37
9	W11186489		Display (with Wiring)   (Replaces: W11185788)				$ 273.18
10	W10382895		Micro Switch (with Wiring)				$ 74.18
11	W11439248		Slide, Guide (left)		Appelez-nous	-
12	W10382894		Fan Assembly				$ 340.13
13	W11439655		Driver, Led   (Replaces: W11439241)		Appelez-nous	-
14	W11439247		Slide, Guide (right)		Appelez-nous	-
15	W10369202		Glide, Glass Support				$ 31.99
16	W11439649		Control, Electronic   (Replaces: W11439234)				$ 582.28
17	W10369364		Housing Control (30" Model Only)		Appelez-nous	-
18	W10369367		Molding, Inside Glass (back) (30" Model Only)				$ 166.44
19	WPW10369366		Sliding Glass (30" Model Only)   (Replaces: W10369366)				$ 299.95
20	W10369357		Molding, Inside Glass (front) (30" Model Only)				$ 191.38
17A	W10369398		Housing Control (36" Model Only)		Appelez-nous	-
18A	W10369385		Molding, Inside Glass (back) (36" Model Only)		Appelez-nous	-
19A	WPW10369389		Sliding Glass (36" Model Only)   (Replaces: W10369389)				$ 289.07
20A	W10369397		Molding, Inside Glass (front) (36" Model Only)				$ 135.96
NI	W10356922		Accessories, Charcoal Filter Replacements				$ 129.53
NI	W10356918		Accessories, Recirculation Kit				$ 165.14
