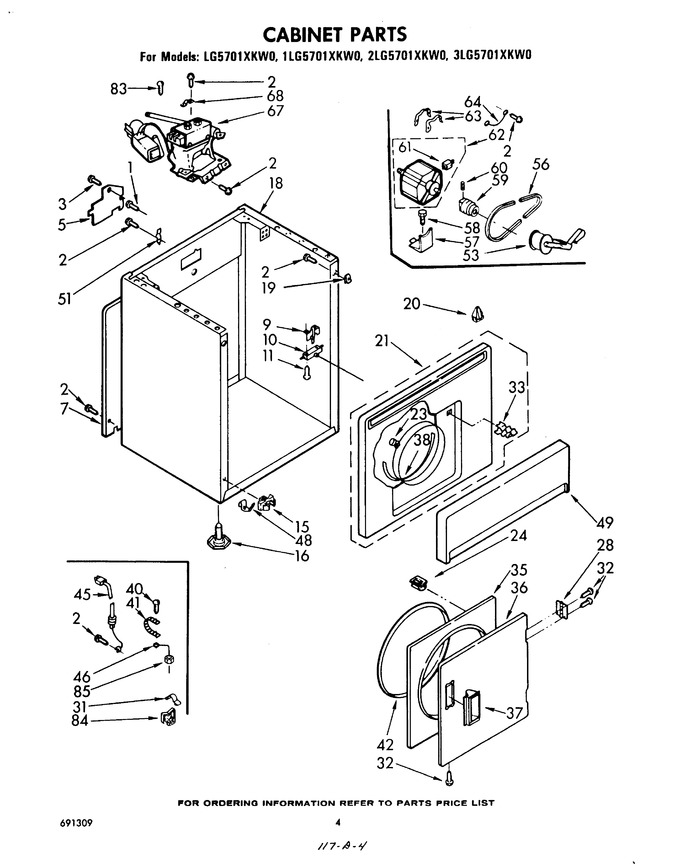

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Top And Console , Literature And Optional
03 - Cabinet
04 - Bulkhead
05 - 688637 Burner
06 - 688639 Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-32 X 1/2 (ground) (Replaces: 690989) |
|
Immediately | $ 7.85 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 7 | 347736 | Panel, Rear |
|
- | |||||
| 9 | WP691581 | Clip, Door Switch (Replaces: 295998) |
|
Immediately | $ 8.09 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 687428) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 7.56 | |||||
| 15 | 690625 | Clip, Toe Panel (2) |
|
- | |||||
| 16 | 49621 | Foot, Dryer (plastic) (4) (Replaces: 688222) |
|
Immediately | $ 8.55 | ||||
| 18 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 18 | 690847 | Cabinet (white) |
|
- | |||||
| 18 | 690848 | Cabinet (almond) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 12.68 | ||||
| 21 | 348394 | Upper Front (white) |
|
- | |||||
| 21 | 689301 | Upper Front (golden Harvest) |
|
- | |||||
| 21 | 689296 | Upper Front (almond) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 28 | WP348023 | Hinge And Pin Assembly (2) (Replaces: 348023) |
|
$ 8.42 | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.09 | |||||
| 32 | 689791 | Screw |
|
- | |||||
| 33 | 279570 | Strike, Door (Replaces: 690082) |
|
Immediately | $ 8.89 | ||||
| 35 | 280077 | Door, Rear (golden Harvest) (Replaces: 689277) |
|
$ 197.58 | |||||
| 35 | 280077 | Door, Rear (white) (Replaces: 348201) |
|
$ 197.58 | |||||
| 35 | 280077 | Door, Rear (almond) (Replaces: 689274) |
|
$ 197.58 | |||||
| 36 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 36 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 147.39 | ||||
| 36 | 689314 | Door, Front (almond) |
|
- | |||||
| 37 | 689584 | Handle, Door (golden Harvest) |
|
- | |||||
| 37 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 7.95 | ||||
| 37 | 689306 | Handle, Door (almond) |
|
- | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 40 | 132848 | Screw, 10-24 X 1 |
|
- | |||||
| 41 | 22965 | Strap, Ground |
|
- | |||||
| 42 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 53.63 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 120.59 | |||||
| 46 | 364089 | Wire, Ground (60 Hz.) |
|
- | |||||
| 46 | 685449 | Wire, Ground (50 Hz.) |
|
- | |||||
| 48 | WP297092 | Clip, Hinge (2) (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 49 | 689246 | Panel, Toe (almond) |
|
- | |||||
| 49 | 689249 | Panel, Toe (golden Harvest) |
|
- | |||||
| 49 | 337833 | Panel, Toe (white) |
|
- | |||||
| 51 | WP8066217 | Hinge Top (Replaces: 238088) |
|
$ 7.82 | |||||
| 53 | WP691366 | Idler Assembly (Replaces: 688166) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 13.37 | ||||
| 59 | W11233559 | Pulley, 60 Hz. (includes Illus. 60) (Replaces: 685011) |
|
$ 113.89 | |||||
| 59 | W11618508 | Pulley, 50 Hz. (includes Illus. 60) (Replaces: 685064) |
|
$ 348.11 | |||||
| 60 | 690046 | Set Screw |
|
- | |||||
| 61 | 279827 | Switch (use W/690870 Motor) (Replaces: 337351) |
|
Immediately | $ 191.95 | ||||
| 61 | 279827 | Switch ((use W/689788 Motor)) (Replaces: 349588) |
|
Immediately | $ 191.95 | ||||
| 61 | 298699 | Switch (use W/338742 Motor) |
|
- | |||||
| 62 | 279827 | Motor Assembly (60 Hz. (alternate)) (Replaces: 690870) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor Assembly (60 Hz. (alternate)) (Replaces: 689788) |
|
Immediately | $ 191.95 | ||||
| 62 | 338742 | Motor Assembly, 50 Hz. |
|
- | |||||
| 63 | WP660658 | Clamp, Motor (alternate) (Replaces: 685441) |
|
$ 7.83 | |||||
| 63 | WP660658 | Clamp, Motor (alternate) (Replaces: 343481) |
|
$ 7.83 | |||||
| 64 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 67 | 349833 | Burner Assembly, 50 Hz. (refer To Sf343) (also See Page 9) |
|
- | |||||
| 67 | W10402145 | Kit, Conversion To Type 1, 2 And 3 To Type 4 (lpg) (Replaces: 687349) |
|
$ 108.77 | |||||
| 67 | 688637 | Burner Assembly, 60 Hz. (refer To Sf343) (also See Page 7) |
|
- | |||||
| 67 | W10402145 | Kit, Conversion (type 1, 2 And 3 To Type 4) (Replaces: 239072) |
|
$ 108.77 | |||||
| 67 | 279243 | Kit, Conversion (type 1 To Type 3) |
|
- | |||||
| 67 | 688639 | Burner Assembly, 60 Hz. (refer To Sf343) (also See Page 8) |
|
- | |||||
| 68 | 341029 | Clamp, Pipe |
|
- | |||||
| 83 | 343826 | Screw, Burner Mounting |
|
- | |||||
| 84 | 688412 | Clip, Retainer |
|
- | |||||
| 85 | W10080180 | Nut, 10-24 (Replaces: 120361) |
|
$ 13.48 |
