SELECT A DIAGRAM

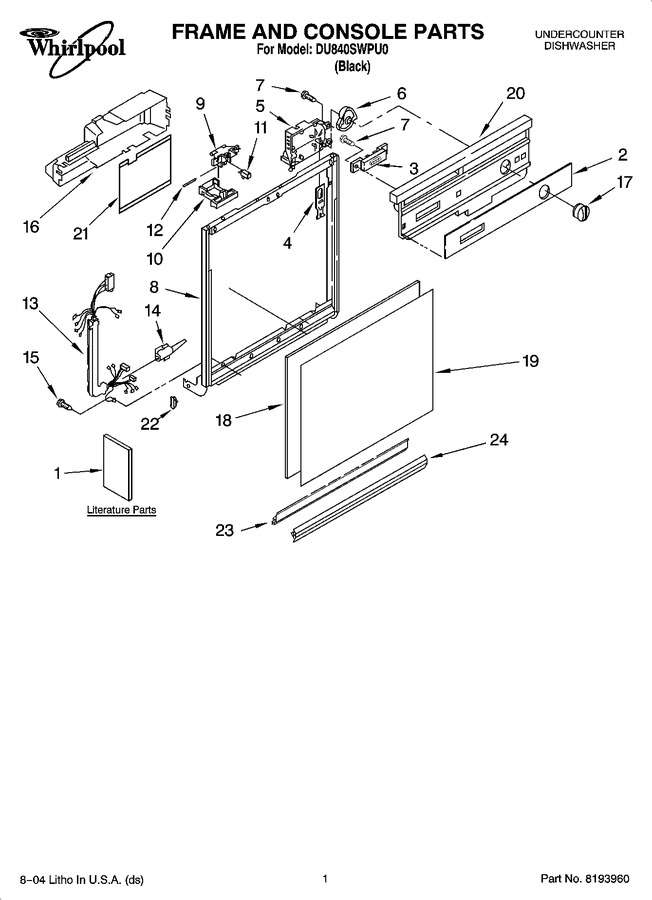

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535421		Guide, Energy		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
1	3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
1	677967		Do-it Yourself Manual		Appelez-nous	-
1	8535037		Guide, Use & Care		Appelez-nous	-
1	8051695		Diagram, Wiring		Appelez-nous	-
2	8535382		Insert, Console		Appelez-nous	-
3	8269365		Switch, 5 Button		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535372		Timer   (Replaces: 8535372)				$ 333.90
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8271451		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8269526		Cover, Control		Appelez-nous	-
17	8275308		Knob, Timer				$ 75.05
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Panel, Front (almond/black)   (Replaces: 3369516)				$ 59.42
19	WP3369769		Panel, Front (white/biscuit)   (Replaces: 8274853)				$ 59.42
20	8535327		Console (includes Item 2)		Appelez-nous	-
21	3379671		Shield, Control Cover		Appelez-nous	-
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
23	3374010		Retainer, Panel				$ 40.68
24	WP3374716		Channel, Retainer (also Order Item 23)   (Replaces: 3374716)				$ 100.22

    View Diagram in Separate Window       Print Part List
