SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door

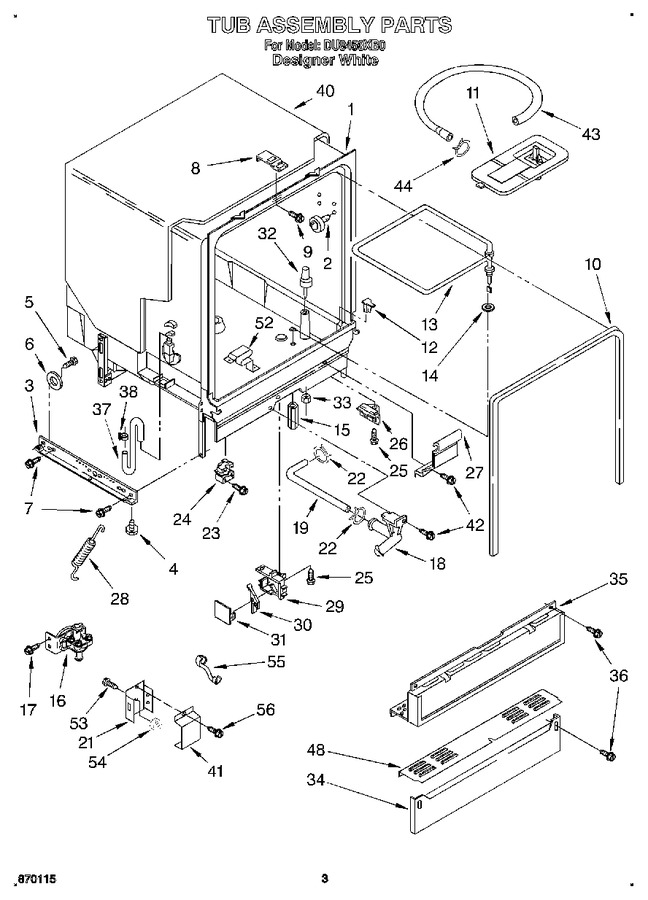

03 - Tub Assembly, Lit\optional


04 - Pump And Spray Arm


05 - Pump And Motor, Miscellaneous


06 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3370860		Tub And Support Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 302849)				$ 80.06
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
8	3372030		Plate, Latch		Appelez-nous	-
9	3372029		Screw		Appelez-nous	-
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 68.27
11	WP3369322		Grate   (Replaces: 3369322)				$ 89.15
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 69.04
13	WPW10082894		Heater   (Replaces: 3372523)				$ 127.37
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.80
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3371817		Water Valve		Appelez-nous	-
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 7.56
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369180		Hose, Coupler		Appelez-nous	-
21	3370292		Box, Terminal		Appelez-nous	-
22	371499		Clamp (double)				$ 12.95
23	WP489128		Screw   (Replaces: 3370225)				$ 10.26
24	W10102260		Relay   (Replaces: 3369063)				$ 128.76
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 7.33
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 73.41
27	3368983		Shield, Harness		Appelez-nous	-
28	3373228		Spring, Door (2)				$ 24.53
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 3369072)				$ 112.43
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel		Appelez-nous	-
35	3371682		Panel, Access		Appelez-nous	-
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 7.36
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.94
40	W11086533		Sound Shield   (Replaces: 3369329)			Immediately	$ 28.17
41	300068		Cover Assembly Terminal Box				$ 30.14
42	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 13.28
43	WP3374077		Hose, Drain   (Replaces: 3368781)			Immediately	$ 92.01
44	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
48	3369531		Extension		Appelez-nous	-
52	3368987		Support, Heater		Appelez-nous	-
53	WP250830		Screw, 8-32 X 1/2   (Replaces: 3371578)				$ 7.90
54	WP488130		Nut, 8-32 (2)   (Replaces: 3371579)				$ 6.59
55	3370307		Relief, Strain		Appelez-nous	-
56	3369138		Screw, 8-18				$ 5.81
	LIT3369679		Instructions, Installation		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 42.89
	799340		Black (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	350942		Primer (white)   (Replaces: 206922)				$ 84.73
	285006		Paint, Spray 13 Oz. (black)				$ 53.90
	4318050		Door Spring Kit (heavy Duty)				$ 23.68
	4317931		Platinum		Appelez-nous	-
	4317930		Toast		Appelez-nous	-
	4317929		Side Panel Kit: (almond)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
	4317927		Gold		Appelez-nous	-
	4317926		Avocado		Appelez-nous	-
	4317925		Side Panel Kit (white)		Appelez-nous	-
	LIT0677967		Do-it Yourself Manual		Appelez-nous	-
	LIT3373599		Wiring Diagram		Appelez-nous	-
	LIT3373738		Guide, Use & Care		Appelez-nous	-
	LIT3373480		Energy Guide		Appelez-nous	-
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 43.49
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 41.27
	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 34.95
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 48.29
	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
