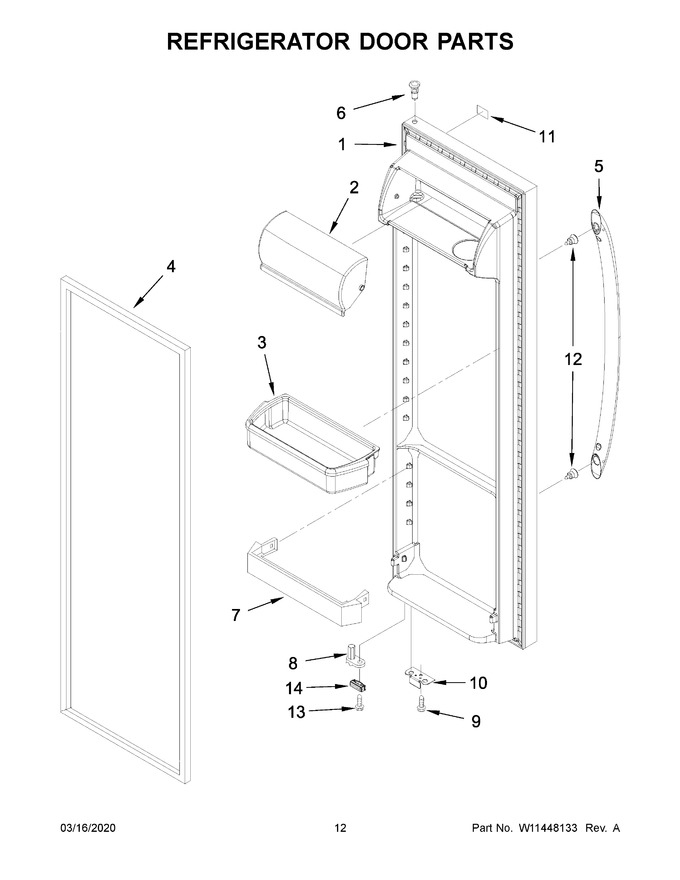

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912366 | Door, Refrigerator (includes Door Gasket) (white) (Replaces: W10912366) |
|
$ 896.73 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | W11174793 | Bin, Door (Replaces: W11034658) |
|
$ 161.02 | |||||
| 4 | 2159073 | Gasket, Door (beige) (Replaces: W10912372) |
|
$ 333.19 | |||||
| 5 | W10210942A | Handle (white) (Replaces: W10210942) |
|
$ 129.53 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 13.79 | |||||
| 9 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 10 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900463) |
|
Immediately | $ 18.67 | ||||
| 11 | W11428492 | Badge (white) (Replaces: W11046244) |
|
$ 83.57 | |||||
| 12 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 13 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 14 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.93 | |||||
| 11A | W11318226 | Badge (black) (Replaces: W11046243) |
|
$ 84.37 | |||||
| 11B | W11182143 | Badge (stainless) (Replaces: W11046241) |
|
$ 80.27 | |||||
| 13A | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 18.60 | |||||
| 14A | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 1A | LW10912374 | Door, Refrigerator (includes Door Gasket) (black) (Replaces: W10912374) |
|
$ 846.10 | |||||
| 1B | LW11156544 | Door, Refrigerator (includes Door Gasket) (stainless) (Replaces: W11156544) |
|
$ 849.95 | |||||
| 4A | 2159081 | Gasket, Door (black) (Replaces: W10912379) |
|
$ 335.58 | |||||
| 5A | W10210942A | Handle (black) (Replaces: W10210943) |
|
$ 129.53 | |||||
| 5B | WPW10257120 | Handle (grey) (Replaces: W10257120) |
|
$ 59.70 |
