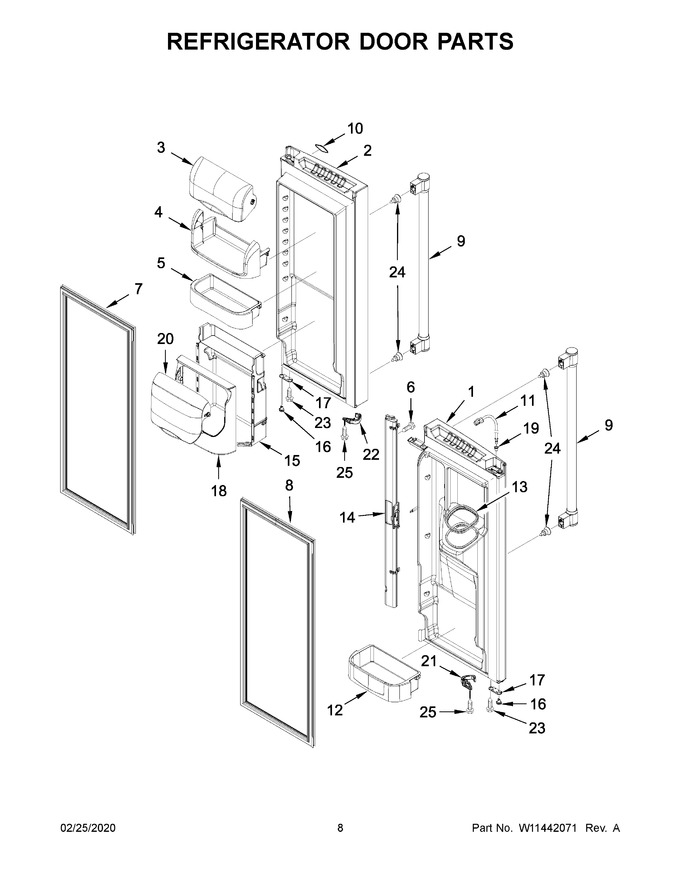

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107889WQ | Door, Refrigerator Left Hand (white) (Replaces: 13107889W) |
|
$ 1,167.35 | |||||
| 2 | 13107890WQ | Door, Refrigerator Right Hand (white) (Replaces: 13107890W) |
|
$ 1,055.41 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bucket, Chiller Top (Replaces: 12945801SP) |
|
Immediately | $ 84.62 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11396037 | Gasket, Door Right Hand (white) (Replaces: W10830057) |
|
$ 312.66 | |||||
| 8 | W11501500 | Gasket, Door Left Hand (white) (Replaces: W10830050) |
|
$ 285.66 | |||||
| 9 | W10918556 | Handle, Door (white) (Replaces: W10891380) |
|
$ 189.54 | |||||
| 10 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 11 | W11082078 | Tube, Water |
|
$ 66.27 | |||||
| 12 | WP12918704 | Bucket, Gallon (clear) (Replaces: 12918704) |
|
Immediately | $ 87.02 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: 12722813W) |
|
$ 341.27 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 269.63 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 86.29 | ||||
| 21 | W10918118 | Latch, Door Closer Left Hand (white) (Replaces: W10833740) |
|
$ 17.01 | |||||
| 22 | W10918120 | Latch, Door Closer Right Hand (white) (Replaces: W10833738) |
|
Immediately | $ 17.01 | ||||
| 23 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 24 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 25 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 14A | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 342.08 | |||||
| 16A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 17A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 1A | 13107891BQ | Door, Refrigerator Left Hand (black) (Replaces: 13107891B) |
|
$ 1,124.98 | |||||
| 21A | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 22A | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 2A | 13107892BQ | Door, Refrigerator Right Hand (black) (Replaces: 13107892B) |
|
$ 920.96 | |||||
| 7A | W11378944 | Gasket, Door Right Hand (black) (Replaces: W10830065) |
|
Immediately | $ 187.59 | ||||
| 8A | W10830052 | Gasket, Door Left Hand (black) |
|
$ 359.76 | |||||
| 9A | W10918557 | Handle, Door (black) (Replaces: W10891379) |
|
$ 189.54 |
