View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts

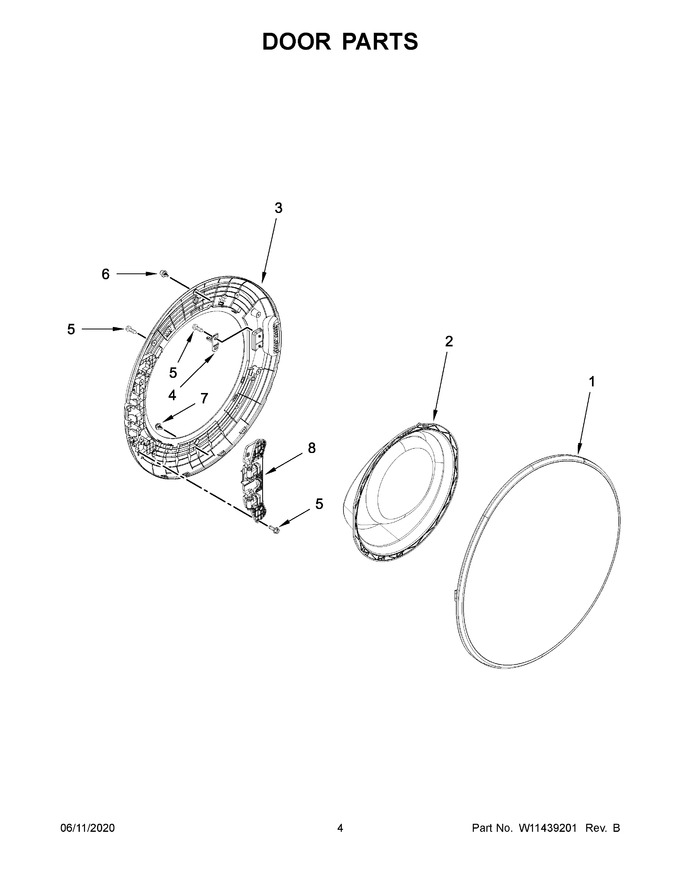

03 - Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318810 | Assembly, Outer Door (chrome Shadow) (Replaces: W11114005) |
|
$ 395.06 | |||||
| 2 | W11316777 | Door, Clear Insert (Replaces: W11171604) |
|
$ 298.76 | |||||
| 3 | W11703964 | Door, Inner (Replaces: W11114009) |
|
$ 297.87 | |||||
| 4 | W11316914 | Strike, Door (Replaces: W10921697) |
|
Immediately | $ 28.72 | ||||
| 5 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.94 | |||||
| 6 | W11230200 | Bumper, Door (upper) |
|
$ 22.55 | |||||
| 7 | W11310051 | Bumper, Door (lower) (Replaces: W11178950) |
|
Immediately | $ 23.61 | ||||
| 8 | W11742046 | Hinge Assembly (Replaces: W11114011) |
|
Immediately | $ 154.58 |
