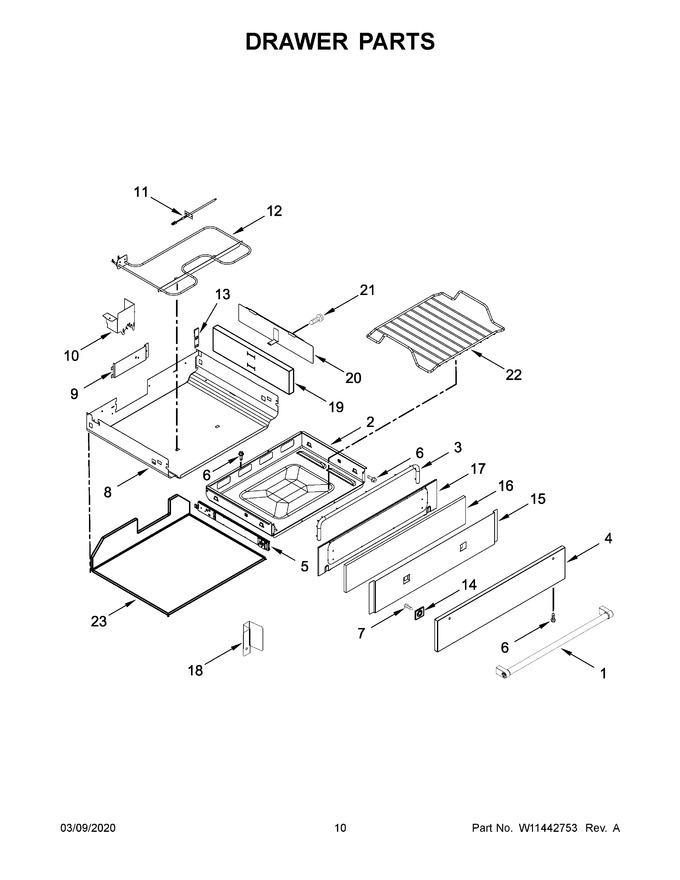

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11104399		Assembly, Drawer Handle (stainless)   (Replaces: W10551000)				$ 237.48
2	W11036176		Drawer, Bake   (Replaces: W10757442)				$ 218.65
3	W10550987		Seal, Drawer				$ 170.36
4	W10861216		Panel, Drawer Front (stainless)   (Replaces: W10541954)			Immediately	$ 228.47
5	W11670722		Slide, Drawer (left)   (Replaces: W10921904)			Immediately	$ 134.05
6	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
7	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 8.78
8	W10634260		Enclosure, Warming			Immediately	$ 209.02
9	W10551025		Cover, Gas Valve		Appelez-nous	-
10	W10634259		Cover, Wire				$ 87.84
11	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
12	W10541944		Element, Bake			Immediately	$ 164.86
13	W10551019		Cover, Side				$ 89.08
14	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 17.43
15	W10551018		Insulation, Drawer Front				$ 112.83
16	W11688515		Insulation, Drawer   (Replaces: W10550982)				$ 119.53
17	W10541947		Panel, Front Inner				$ 171.63
18	W10655446		Shield, Corner				$ 32.45
19	W10550984		Insulation, Drawer Side		Appelez-nous	-
20	W10550985		Retainer, Side Insulation		Appelez-nous	-
21	W11169708		Screw   (Replaces: 3196560)				$ 13.36
22	W10602493		Rack, Bake Drawer				$ 619.06
23	W11688775		Insulation, Bake Drawer Bottom   (Replaces: W10551011)		Appelez-nous	-
5A	W11670723		Slide, Drawer (right)   (Replaces: W10921905)			Immediately	$ 134.05
NI	W10550983		Insulation, Retainer Bake Drawer		Appelez-nous	-
NI	W11688782		Insulation, Drawer Top   (Replaces: W10541960)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
